5T Max. R2R Pressure-Controlled Cold Rolling Press (6″ Width), Glovebox Compatible – MSK-2150-H5-R2R

In stock

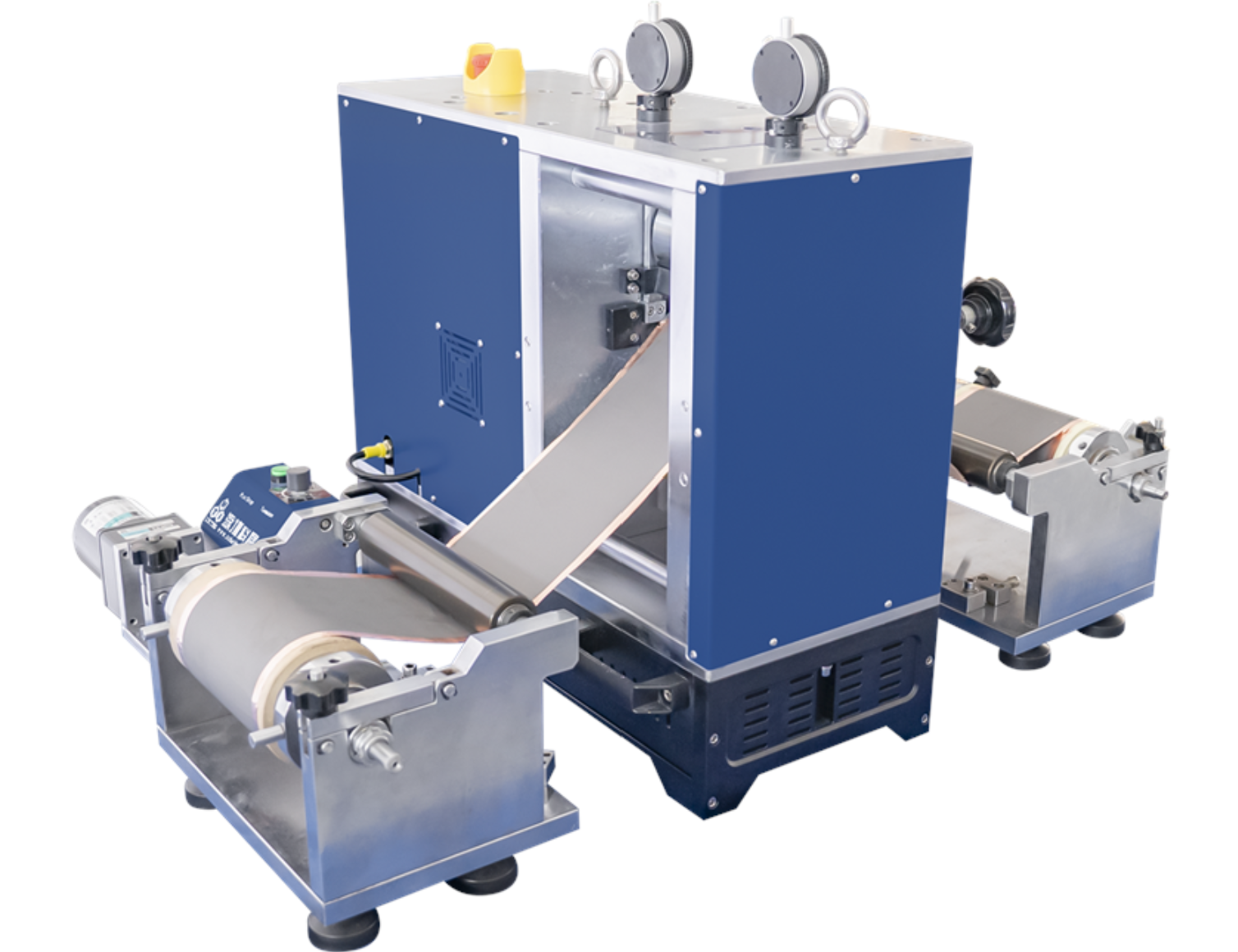

MSK-2150-H5-R2R is a 150mm width (6″) pressure-control electric rolling press with roll-to-roll unit.  It is an ideal roll-to-roll cold calendar with adjustable pressure for battery electrode calendaring and improving electrode  compaction density.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: 5t-max-r2r-pressure-controlled-cold-rolling-press-6-width-glovebox-compatible-msk-2150-h5-r2r

Product details

SPECIFICATIONS:

   Features


Loading force up to 5T adjustable by touchscreen controlRolling speed adjustable in the range of 0.1-2.5 m/minRoller size: 150mm width x 100 mm Dia, made of hardened steel (RC: 58 – 60) with Cr electroplated coatingDual micrometer for accurate thickness adjustment in the range 0 – 2.5 mmInfinite switch for various tension control 0~20NTension adjustable torque motor for active reeling
Touchscreen Controller


Rolling speed, pressure, and real pressure display are shwon on main page.Rolling direction can be changed in forward or reverse.Rolling start or stop button for easy operationAlarm alert and details will be displayed
Working VoltageAC110-220V, single phase, 50/60Hz, 1000W
Rolling Accuracy± 1.5 μm
Rolling Motor750W reduced AC motor with frequency speed controller
Note: (This calendar machine can be used in a glove box with Ar gas )
Surface Hardness of RollersHRC 58 – 60Never roll materials with hardness > 50 HRCSample width max 140 mmNote: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers
Digital MicrometerRange: 0 – 10mmResolution: 0.01mm (or 0.001in)Unit interchangeable (mm / in)ZeroingPower supply: CR2032 3V Li-ion batteryOperating temperature: 0 ~ 40°C
Roll to Roll Unit

208 – 240 VAC, 50/60Hz, Single Phase, 100W220V AC Power plug is not included (Please click here to order the plug)You may use 200W transformer to operate at 110VThe brushless motor ensures no sparking in the Ar gas environmentThe film traverse speed is dependent on its calendering speed, normally <1.5 meters/minCardborad on the rollers.: 3 inches Maximum diameter of the roller diameter is up to 200 mm.
Overall Dimensions
  		Press: 580 mm (L) x 360 mm (W) x 600 mm (H)


Net Weight150 kg (Press) + 50 kg (R2R)
ComplianceCE CertifiedNRTL or CSA certification is available upon request at an extra cost
WarrantyOne year limited with lifetime supportRusting and damage due to improper storage condition or maintenance are not covered by warranty
Application NotesThe MSK-2150-H5-R2R are specially designed for electrode calendaring of battery R&D in terms of its advantages as affordable, compact, and precise. Please strictly follow the instructions to operate:Must use acetone to clean rollers’ surface after each useIf the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollersThe minimum thickness of the rolled sheet should depend on the physical property of the material. If you have other materials to process. Please mail us your samples and we are willing to do the test for you.
Operation Video

               Demo Video                                Operation Video
WarningsNever roll materials with hardness > 50HRCMulti-step thickness calendering needed: while calendering the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thicknessNever calendering decrement over 0.02mm comparing with original sheet thickness each calenderingMust clean the roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
