Home/Rollers and Press/Hydraulic Press/10T Compact Lab Press with Separable Hydraulic Pump & Safety Cover – YLJ-10T
10T Compact Lab Press with Separable Hydraulic Pump & Safety Cover - YLJ-10T

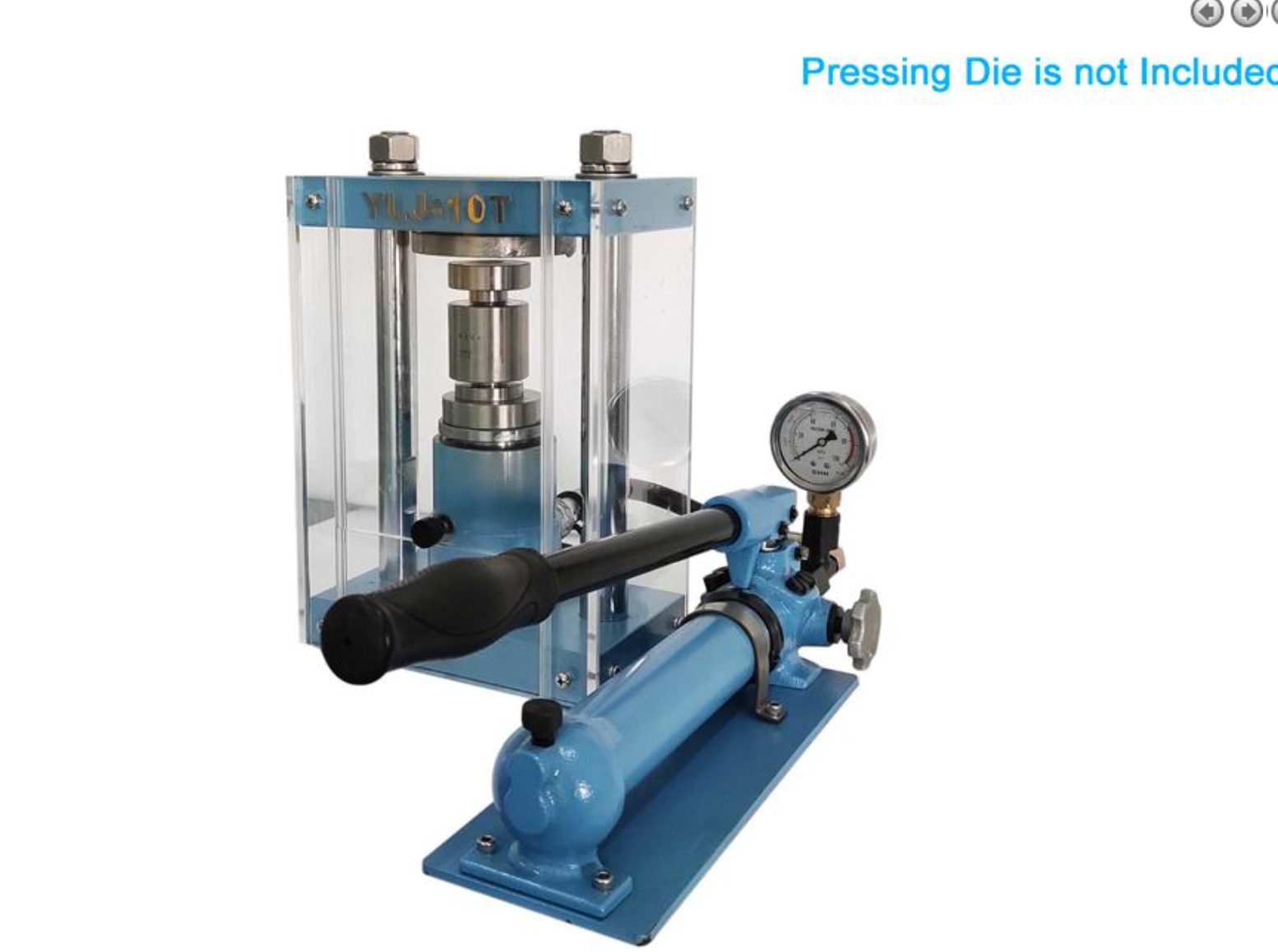

10T Compact Lab Press with Separable Hydraulic Pump & Safety Cover - YLJ-10T - Image 2
10T Compact Lab Press with Separable Hydraulic Pump & Safety Cover - YLJ-10T - Image 3
,

10T Compact Lab Press with Separable Hydraulic Pump & Safety Cover – YLJ-10T

In stock

$998.00

YLJ-10T  is a compact hydraulic machine of up to 10 metric tons for materials/chemistry research laboratories to prepare compound ceramic samples. YLJ-10  has a transparent protection shield and a separate manual hydraulic pump, which makes it easy to repair and replace.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
Buy now
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: 10t-compact-lab-press-with-separable-hydraulic-pump-safety-cover-ylj-10t

Product details

Specifications:

   Max. Pressure 10 Metric TonThe pressure gauge is built-in
Gauge Pressure Value to Force Conversion



Displayed pressure value to actual applied force conversion: 1 MPa = ~ 0.3 TonThe actual force applied to the vessel cylinder (Ton) is equal to the force applied to your working pieceFor calculating the actual pressure (Mpa) applied to your working piece, please follow the equations below:          P = T x g x 10/ (πr^2)P: pressure (Mpa) applied to your working pieceT: force (metric ton) applied to the pressure vessel cylinderg: standard gravity. g ≈ 9.8 m/s2π: ~3.14r: radius (cm) of the pressure vessel (3 cm)*1000 Kg = 1 Metric Ton; 1 Mpa = 10 Kg/cm2
Hydraulic Machine


 10 T Max.The hydraulic cylinder travel distance is 45 mmCylinder diameter:    35 mmWorking space:        125LX100WX100H ( mm)The manual hydraulic pump is separated from the cylinder for safe operationWhen pressing with a small/short die, spacers are needed to obtain the desired pressure
 Pressing Die (Optional)Please click picture below to choose a pressing die


Overall Dimension


Net Weight   25kg
Shipping Weight & Size 160 lbs; 48″x40″x40″
WarrantyThe pressing machine was quality inspected in the USA, lifetime support is providedOne-year limited standard warranty (Extended warranty is available up to 5 years at extra cost).
 Demo Video
Application Notes
 		The pressing die is not suggested to be used for pressing powder with particle size < 30 microns. Small particles may slip into the gap between the pushing rod and the steel sleeve and cause damage to the sleeve during the compression. Ball mill and sieve the powder and apply only the 32~75 microns powder to the pressing die to avoid damage. Please consider using the 3” Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold using ethanol after completing each experiment.
