100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320
100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320 - Image 2
,

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option – MSK-DPC-B320

In stock

MSK-DPC-B320 is an automatic roll-to-roll calendering press system with precision digital pressure control for battery electrode production.
It has 370 mm width and 320 diameter high strength alloy rollers and can produce electrodes up to 350 mm width at 6 m/min max speed and the rolling force of 100 metric tons.


  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: 100t-max-pressure-controlled-rolling-press-d320-x-w350-mm-w-r2r-option-msk-dpc-b320

Product details

SPECIFICATIONS:

Working VoltageAC 220V or 380V 50/60 Hz Three PhaseMax. Power Consumption:  6 KW
Rollers (one pair)Dimensions: 320mm Diameter x 370mm WidthMaterial: Hardening Tool Steel 9Cr3Mo with HRC 65 -70Hardening material layer thickness:  10 mm
Effective Rolling Width: <= 350 mmMax. Diameter of delivering and winding:  320 mmMax. Force:   100 T
Press gap0 – 2 mm adjustableTolerance: 0.001 mm
Rolling Speed0.3 – 6 Meter / Minute adjustable by Touch Screen Control Panel
Press FlatnessThickness Accuracy:   ± 0.0025mmSurface Roughness:   <  Ra 0.4
Pressure ControlPressure load: 1 – 100 Tons adjustable by Touch Screen Control Panel
Real-time pressure display with data saved function
Accessories IncludedRolling to Roller cleaning function is  built-inEdge cutting device includedDust Removing device installedRoller installation and unload cart included
Roll to Roll Device (Optional)


Roll to Roll Feeding and Collecting is available as optionMaximum Roller Width: 350 mmFeeding and Collecting Roller Diameter: 250 mmTension Control: Maximum 50 N
Utility and Environment Compressed air: 0.5~0.8 Mpa (Air compressor is not included)Environment Temperature:     25 ± 3℃Environment Humidity           0~90RH
Dimensions

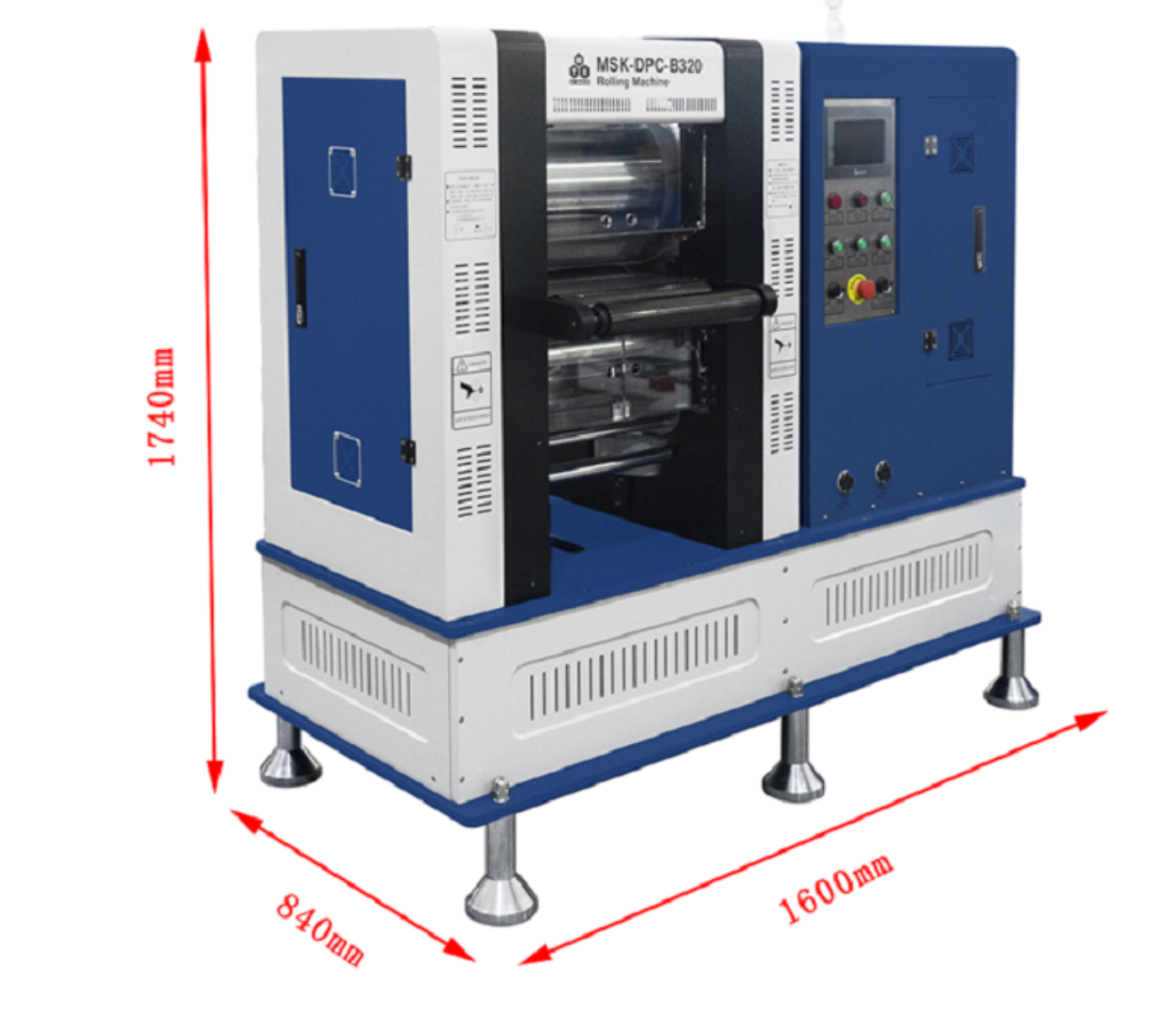

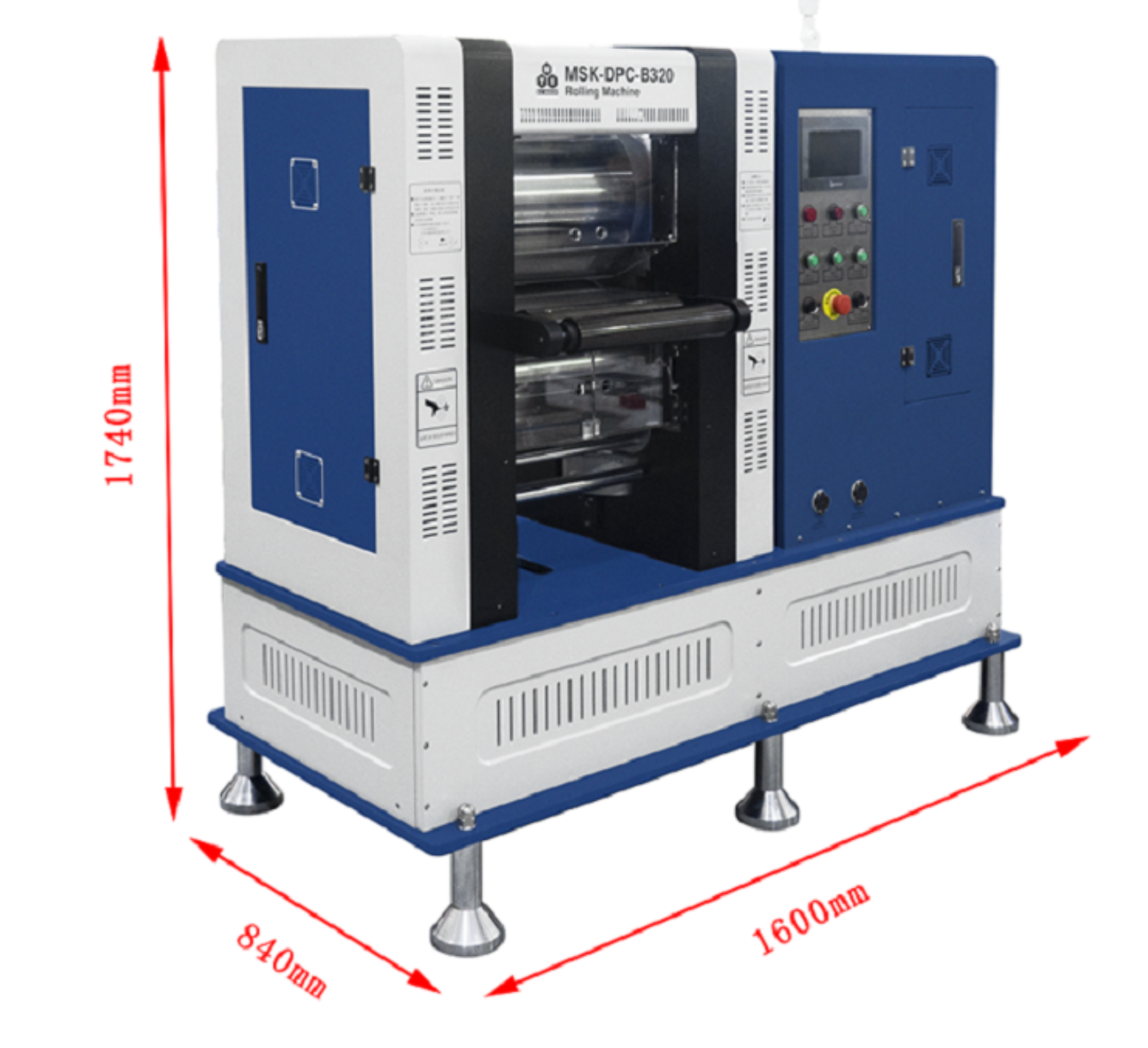

Rolling Machine: L1,600 mm x W840 mm x H1,740 mmFootprint (Including Roll to Roll): L2,400 mm x W1,600 mm x H1,740 mm


Demo Video
ComplianceCE certifiedNRTL or CSA certification is available upon request at the extra cost
WarrantyOne year limited warranty with lifetime supportRusting and damage due to improper storage condition or maintenance are not covered by warranty
Net WeightRolling Machine: 2.3 metric tonsRoll to Roll Device: 0.4 metric tons in total
Application NotesIt is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).
