25T R2R Pressure Controlled Rolling Press ( 300mm Width) for Battery Electrodes

25T R2R Pressure Controlled Rolling Press ( 300mm Width) for Battery Electrodes – MSK-E2300B

In stock

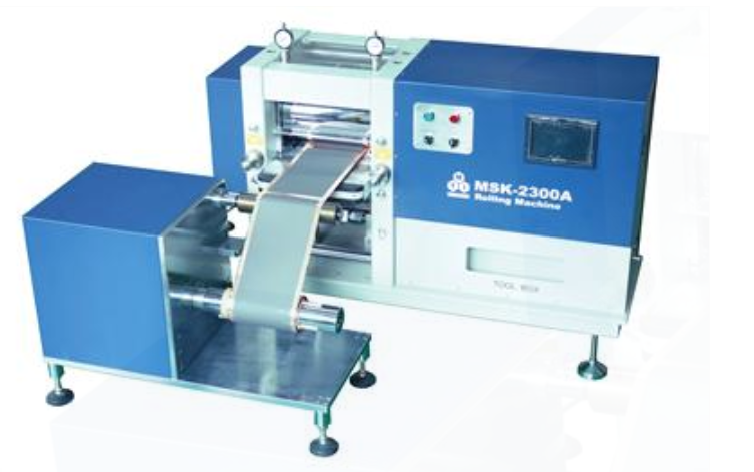

MSK-E2300B is an Automatic Battery Electrode Rolling Press System with precision digital pressure control in a compact footprint that is less than 6’x6′. It integrates tension controlled feeding and winding devices together with Pressure Controlled Electric Rolling Machine to achieve attention-free electrode rolling & pressing up to 75 meters long with the 300mm max-width. It is a perfect tool for building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries to prepare electrode sheets at consistent and repeatable rolling conditions.

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

SKU: 25t-r2r-pressure-controlled-rolling-press-300mm-width-for-battery-electrodes-msk-e2300b

Product details

SPECIFICATIONS:

Working Voltage	208 – 240 VAC, 50/60Hz, Single Phase220V AC Power plug is not included (Please click here to order the plug)
Max. Power Consumption	2kW
Rollers (one pair)	Dimensions: 200mm (Dia.) x 330mm (W)Material: Hardening Toll Steel with HRC 60-62 Effective Rolling Width: <250mm
Press gap	0.050 – 1 mm adjustable by Dual micrometer knobsTolerance: 0.003mm
Motor & Rolling Speed	550W AC motor with frequency controller1 – 6 Meter /Minute adjustable by Touch Screen Control Panel
Roller Surface Hardness	60-62 HRCNever roll materials with hardness >50HRC
Press Planeness	±0.0025mm
Pressure Control	Pressure load: Max. 25Tons adjustable by Touch Screen Control Panel Real-time pressure displays with data recording function The electrode edge slitting is avilbale upon request for for cyclindrical cell fabrication.
Rectifying Sensor	Built-in Rectifying Sensor to ensure neatly reeling electrode foil after pressing
Compressed air	60psi required (Air compressor is not included. Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Rolling Unit Dimensions	Rolling Machine: 1200mm(L) x420mm(W) x 800mm(H)The system with feeding & winding:
Compliance & Warranty	MTI has granted the patent 201720537817.1& 201720534495.5 for the Roll to Roll Pressure Controlled Electric Rolling Machine MSK-E2300B since December 2017.NRTL or CSA certification is available upon request at the extra costOne-year limited warranty with lifetime supportRusting and damage due to improper storage condition or maintenance are not covered by warranty
Application Notes	Never roll materials with hardness >50HRCMust use acetone to clean and dry rollers’ surfaces after each use to avoid rustingMulti-step thickness calendering needed: While calendering the sample sheet, make each calendering decrement of 0.02mm comparing to sheet original thickness.Roll and press the electrode sheet multiple times to condense the slurry.Apply antitrust if the machine were to be unused for a long period of timeSample testing is available upon customer’s requestPre-installed Edge Position Controller (EPC) used for controlling the edge position of film during winding,It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gasses & vapor).
Articles	Please refer to this instruction on how to calculate rolling pressure from roller gap (reference only)Analysis of geometric and electrochemical characteristics of lithium cobalt oxide electrode with different packing densities
Operation Video
Net Weight	1000 kg (2200 lbs)
Shipping Weight & Dimensions	Two Pallets2020 lbs, 56″x48″x48″810 lbs, 48″x40″x60″
