Product details
| Max. Pressure | 40 Metric Tons |
| Bottom Hydraulic Cylinder Travel Distance | 0 – 16 mm |
| Top Support Screw Adjustable Height | 170 mm |
| Hydraulic Cylinder Diameter | 80 mm |
| Max. Working Space | 80 mm Dia. x 170mm H |
| Gauge Pressure vs Cylinder Force | Pressure Display on gauge (MPa)5.611.417.022.828.43439.845.4Force on Hydraulic Cylinder (T)510152025303540 Calculation: Force on Hydraulic Cylinder ( T ) = 0.88 Gauge (MPa) |

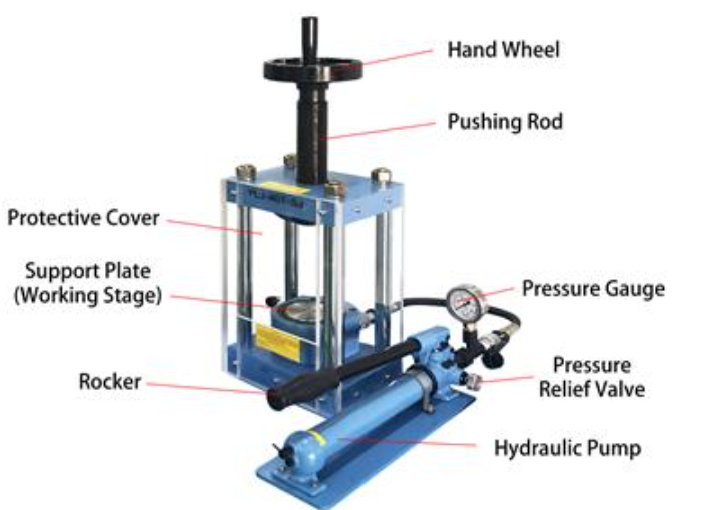

| Protection Cover | A Polycarbonate Safety Shield is included in the standard package. Note: The door must be closed during use. |
| Dimension | 350mm L x 550mm W x 600mm H |
| Net Weight of Machine | 55 Kg (121 lbs) |
| Shipping Dimensions | 39″(L) x 31″(W) x 35″(H) |
| Shipping Weight | 185 lbs |
| Press Dies optional | Pressing dies with various diameters are available upon request at extra cost. Please click the picture below to choose dry pressing die Heatable die |
| Electric pump optional | The manual pump can be replaced by the electric pump which has programmable pressure control to use inside glovebox ( Feedthrough for manual pump is not available )    |
Operation Instructions | https://youtu.be/QcemvYz1GGY |
| Warranty | The pressing machine was quality inspected in the USA, lifetime support is providedOne-year limited standard warranty (Extended warranty is available up to 5 years at extra cost) |
Warning  | The pressing die cannot be used for pressing powder with a particle size < 30 microns. Small particles may slip into the gap between the pushing rod and the steel sleeve and cause damage to the sleeve during the compression. Ball mill and sieve the powder and apply only the 32~75 microns power to the pressing die to avoid damage. Please consider using the 3” Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps.Please clean the pressing die using ethanol after the completion of each experiment.Customers must always wear protective goggles during operation.Do not raise the bottom cylinder (piston) more than its maximum traveling distance. (MAX.25mm)Operate the press inside the glove box with the manual pump is not recommendedCheck the oil level and eliminate any air in the oil tank if the press has been sitting idle for a long time. |
