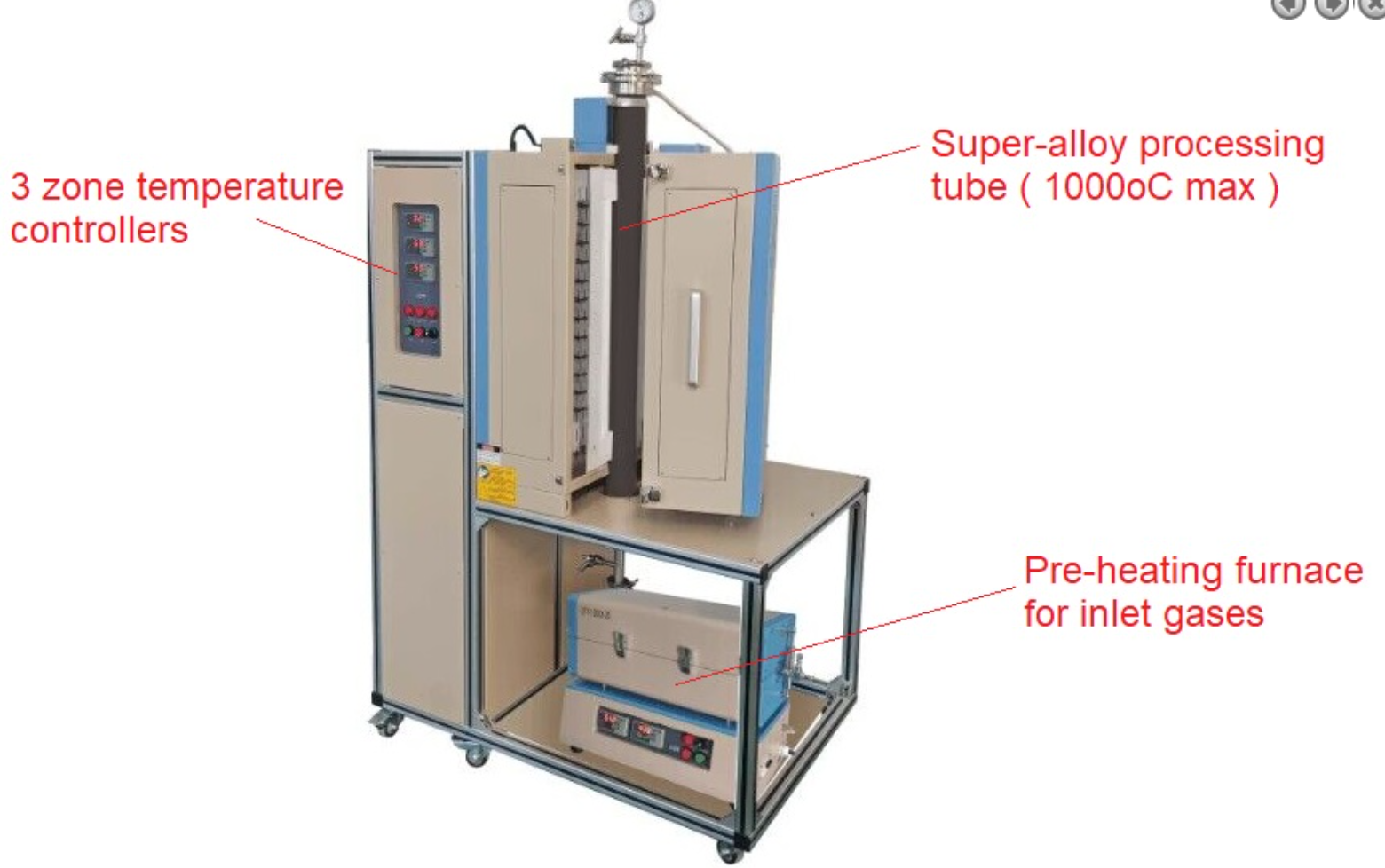

Hi-Pressure Fluidized Tubular Reactor up to 1000oC and 20 MPa - OTF-1200X-NS-FB
Hi-Pressure Fluidized Tubular Reactor up to 1000oC and 20 MPa - OTF-1200X-NS-FB - Image 2
Hi-Pressure Fluidized Tubular Reactor up to 1000oC and 20 MPa - OTF-1200X-NS-FB - Image 3
,

Hi-Pressure Fluidized Tubular Reactor up to 1000oC and 20 MPa – OTF-1200X-NS-FB

In stock

OTF-1200X-NS-FB is a three-heating zone (1200 mm L ) tubular reactor/reactor with 1000oC max working temperature and optional pressure up to 25 Mpa.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: hi-pressure-fluidized-tubular-reactor-up-to-1000oc-and-20-mpa-otf-1200x-ns-fb

Product details


Power
Voltage:  208 – 240VAC , 50/60Hz, single phase
Power：9.0 KW   ( 50A air breaker is required )
Heating furnace

Fibrous alumina for thermal insulation
Double-layer steel structure with air cooling

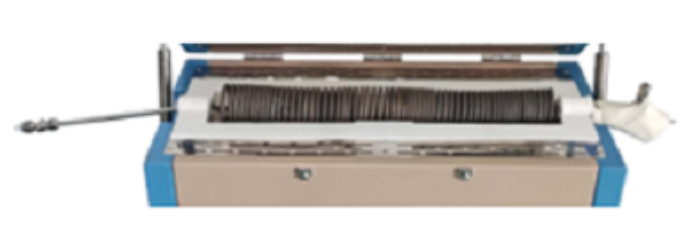

Vertical Split door design for easy installation of tube
Separated temperature control unit
Three heating zones with 1200 mm total length ( 400 + 400 + 400 mm) with independent temperature control
Max. working temperature:  1000ºC
Max heating rate:                  20ºC/minute
Optional：  Pre-heating furnace for gas is available at the extra cost to provide heated gas to processing vessels upto 700oC va 310S alloy tube

Processing tubeNickel base super-alloy tube with the optional diameter and CF flange
φ30 OD x φ15 ID X 1400 L (mm )
φ80 OD x φ40 ID X 1400 L (mm )
Max. working pressure is dependent on max working temperature
≤700ºC,   Pressure:    ≤ 25 MPa
≤ 800ºC,  Pressure:    ≤ 20 MPa
≤ 900ºC,  Pressure:    ≤ 10 MPa
≤ 1000ºC, Pressure:   ≤ 5 MPa
≤ 1100ºC, Pressure:   ≤ 3 MPa
One mechanical pressure gauge pre-installed on top of the tube (Pic. 1)
The pre-installed Safety relief valve will turn on automatically once the pressure reaches 0.3Mpa.
One Ni alloy mesh is installed inside the tube center to carry two layers of materials (Pic. 2 &3)
       Pic. 1       Pic. 2     Pic.3
Temperature Controller
Three digital temperature controllers are installed to control 3 heating zone independently
30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
Over-temperature protection and alarm allow for operation without attendant(s).
+/- 1 ºC temperature accuracy.
Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Dimensions

L 1200 x W 700 X H2500  (mm)

Net Weight



~150 Kg
Warranty
One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)
Dimensions


2000mm（L）×800mm（W）×2360mm（H）
Net Weight

.		~330 Kg


Warranty One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

Laptop & software (Optional)


    		Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
Labview Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces
Compliance


CE Certified
NRTL or CSA certification is available at an extra cost
