1200°C 3-Zone Fixed/Fluidized Bed Furnace for Methane Reforming and Fischer-Tropsch Reactions- OTF-1200X-III-HP-VT

In stock

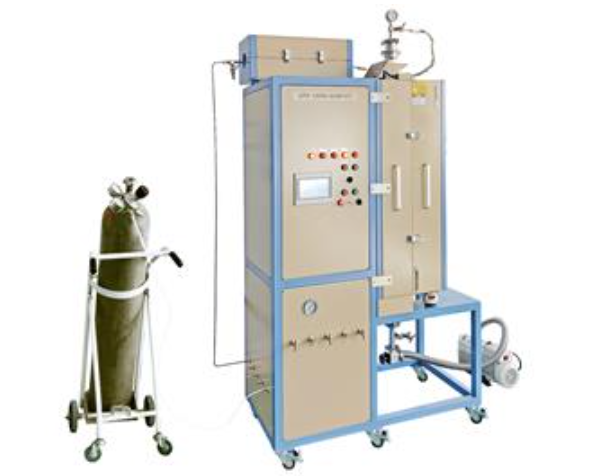

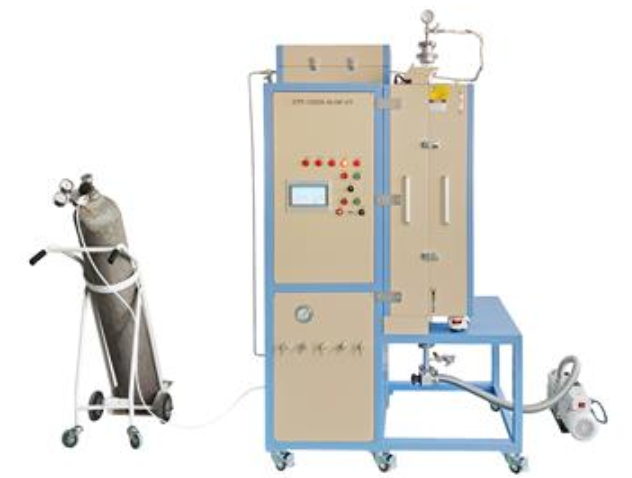

OTF-1200X-III-HP-VT is a three-heating zone (900 mm L) vertical fluidized bed furnace with 1200°C max (1100°C continuous) working temperature and two 60mm dia. processing tubes, which can be used to test catalysts for methane reforming (hydrogen and syngas production) and Fisher-Tropsch (hydrocarbons synthesis) reactions.

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

SKU: 1200c-3-zone-fixed-fluidized-bed-furnace-for-methane-reforming-and-fischer-tropsch-reactions-otf-1200x-iii-hp-vt

Product details

Power	Voltage: 308V AC , 50/60Hz, Three-phases Power: 10 KW
Heating Furnace	Vertical split door design for easy installation of tube Separated temperature control unit Max. Working Temperature: 1200 °C ( less than 30 mins ) Continuous Working Temperature: 1100 °C Recommend Heating Rate: ≤ 10 ºC/min Three heating zones with 900 mm total length ( 300 + 300 + 300 mm) with independent temperature control

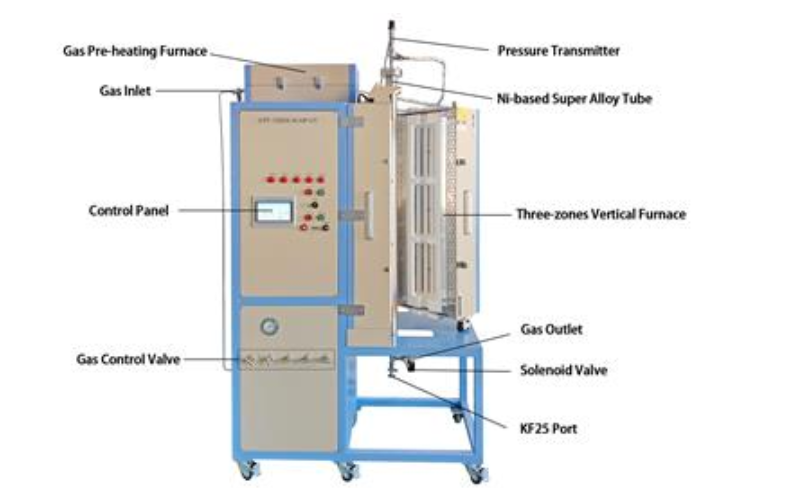

Gas Pre-heating Furnace	Gas Pre-heating Furnace provides heated gas to processing vessels via 316L SS tube Voltage: 208-240V AC, 50Hz Power：2.4 KW Length of Heating Zone: 400 mm Max. Working Temperature: 700°C ( Max. pressure at this temperature: ≤ 2.5 MPa) Length of Heating Tube: Ø 25 x 700 mm (spiral shape)
Processing Tube	Two types of processing tubes and flanges are included: Quartz Tube: Ø 60 O.D. x Ø 52 I.D. x 1400 L (mm) Frits with forced convection design can trap the particles within the central heating area (Pic.1&2) One mechanical pressure gauge is pre-installed on the top flange Nickel Base Super Alloy Tube with CF60 flange: Ø 60 O.D. x Ø 50 I.D. x 1400 L, mm One pressure transmitter is pre-installed on the top flange. The bottom flange is equipped with a 50-mesh air distribution plate (Pic.3) The pressure inside the alloy tube will be varied by the change of the temperature: Temperature ≤ 800ºC, Pressure: ≤ 2.5 MPa Temperature ≤ 900ºC, Pressure: ≤ 2 MPa Temperature ≤ 1000ºC, Pressure: ≤ 1.5 MPa Temperature ≤ 1100ºC, Pressure: ≤ 1 MPa The pre-installed safety relief valve will turn on automatically once the pressure exceeds the safety range. A KF25 port on the bottom flange to connect with a vacuum pump. Pic. 1 Pic.2 Pic.3
Temperature Controller	Three digital temperature controllers are installed to control three heating zones independently 50 programmable segments for precise control of heating rate, cooling rate, and dwell time. Built-in PID Auto-Tune function with overheating & broken thermocouple protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Optional Vacuum Pump	The vacuum pump is not included in the standard, Enquire now to order a vacuum pump separately.
Dimensions	L 1410 x W 700 X H 2250 (mm)
Net Weight	~200 Kg
Warranty .	One-year limited warranty. The warranty does not cover consumable parts such as heating elements, processing tubes, and o-rings, please order the replacement for related products
Laptop & software (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) *Labview Based Temperature Control System (EQ-MTS01)*enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
Compliance	CE Certified NRTL or CSA certification is available at an extra cost
Warning	For safety operation, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure below 3 PSI. Click here to learn about the installation of a gas regulator. The pressure inside the quartz tube must be < 0.02 MPa The pressure inside the super alloy tube must be < 2.5 MPa
