Product details
| Power | AC 110V, Single Phase, 50/60Hz 1.5KW Max. |

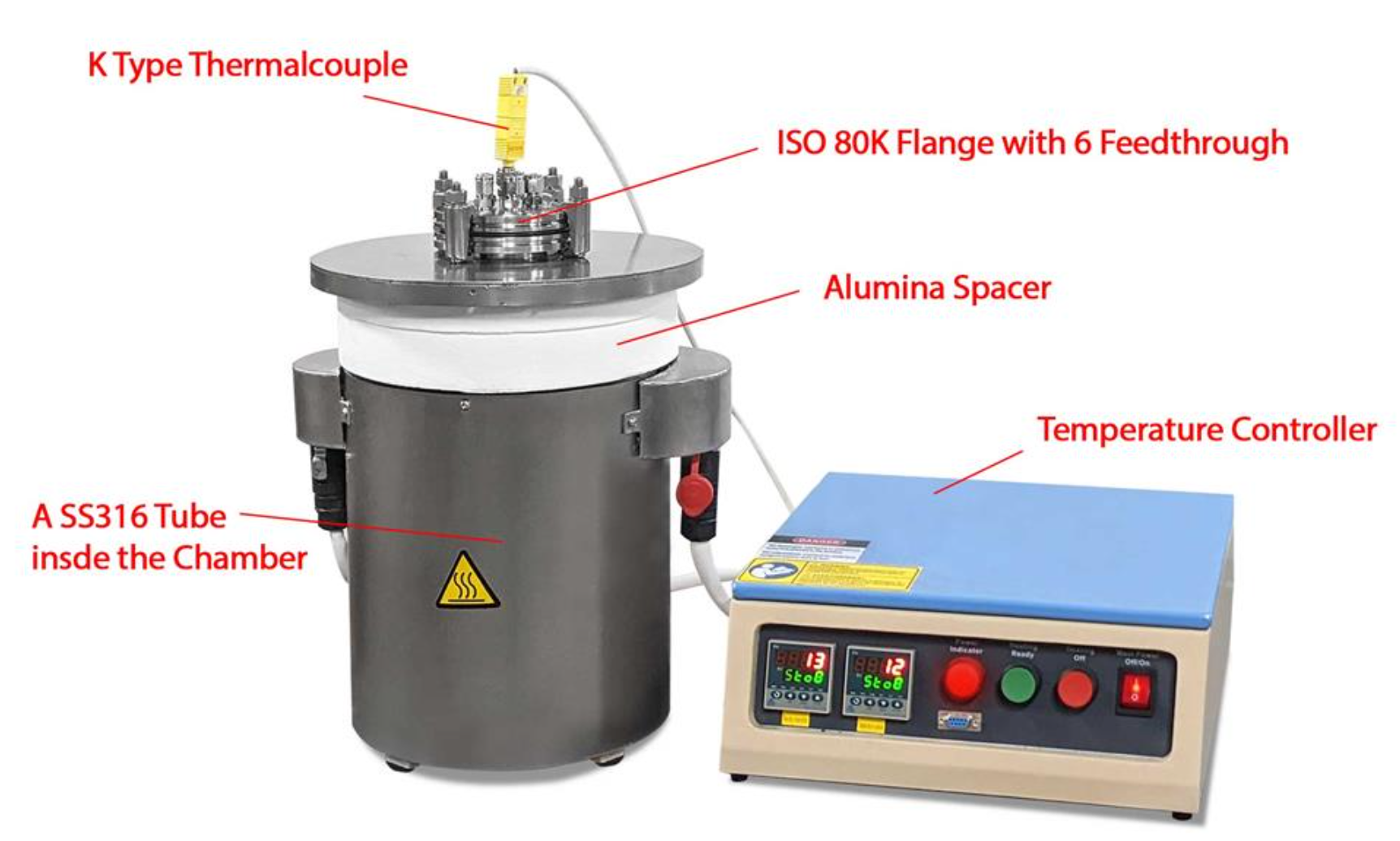

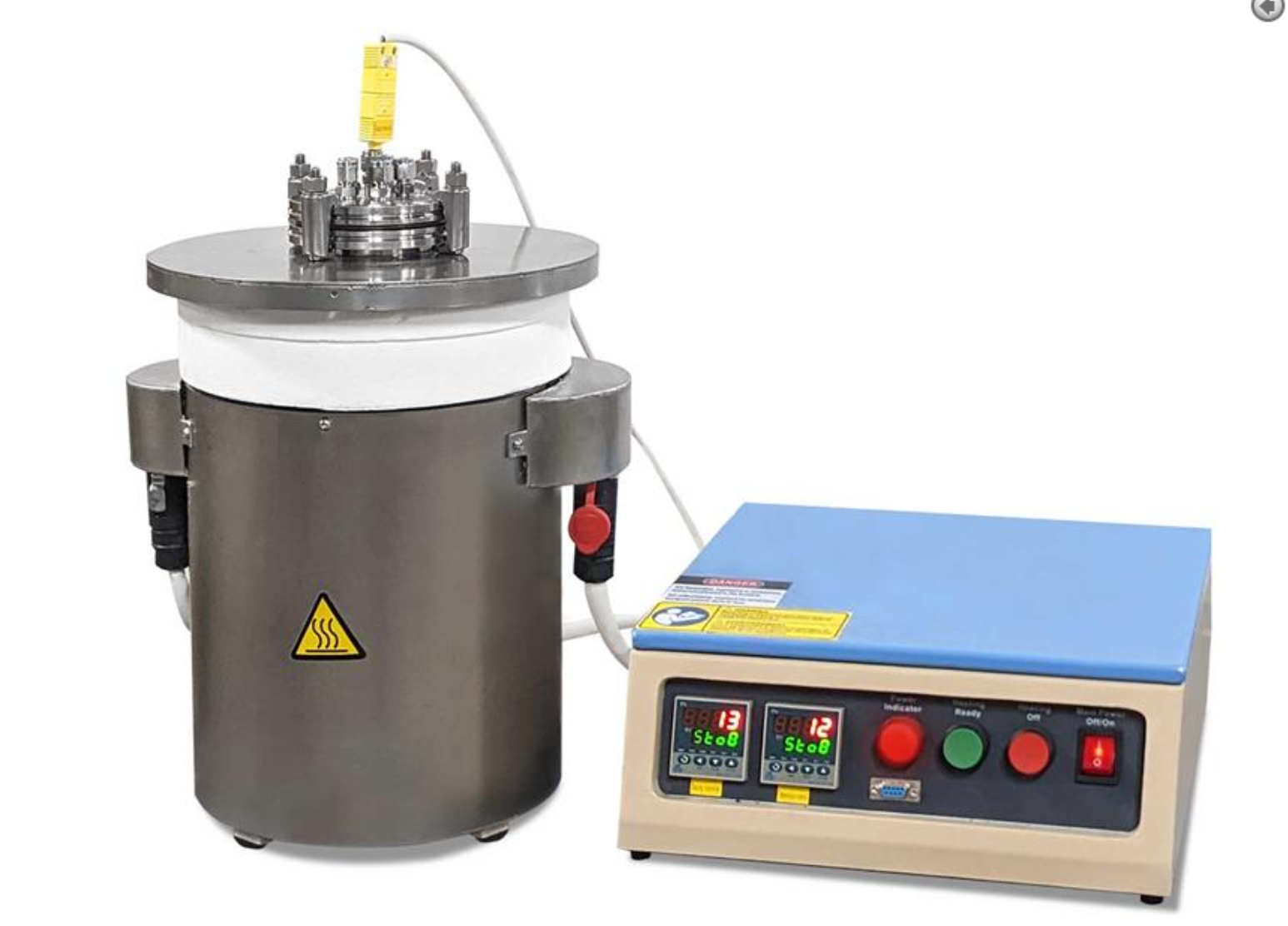

Structure  | SS316 case for anti-corrosive processing The crucible furnace has a heating chamber of 4.7″ ID x 8″ H, (120 mm ID x 200 mm H) The separated temperature controller for remote operation The compact furnace can be put in the glovebox via an antechamber The furnace includes an SS316 tube and an ISO 80K flange with 6 feedthrough An alumina spacer is included to isolate the temperature from the heating chamber |
Reaction Vessel | The reaction vessel is made of SS 316. DN80ISO-K flange with six 1/4″ compression tube ports. Tube dimension: Ø 76 x Ø 70 x D 290 mm Max. Vacuum: 10-6 torr by turbo pump Max. positive pressure: 0.2 Mpa ( 2 bar ） |
| Max. Temperature | ≤600°C |
| Max. Heating Rate | 20 °C /min Max. |
Temperature controller | One digital temperature controller is built in with an accuracy of ±1°C PID automatic control and auto-tune function. 30 programmable segments for precise process Built-in protection for overheating and broken thermocouples. Two Omega K-type thermocouples included One for furnace temperature control One for temperature monitoring inside the vessel. RS485 port is included for the remote control. |
| Shipping package size | 40″ x 23″ x 31″ |
Dimension | Control Unit: 340mm L x 300mm W x 145mm H Furnace: 350mm L x 265mm W x 540mm H |
| Shipping weight | 109 lbs |
| Warranty | One-year limited warranty (The warranty does not cover consumable parts) |
| Certificate | CE Certified NRTL Certification is available upon request, additional charges will apply |
| Warranty | One-year limited warranty (Consumable parts are not covered by the warranty) |
| Operation Instructions | https://youtu.be/gFhv12_CTuA |
