Hi-Pressure Fluidized Bed Furnace/ Reactor ( 3 bar @1100oC) w/ 1“ID Super-Alloy Tube - OTF-1200X-S-SB

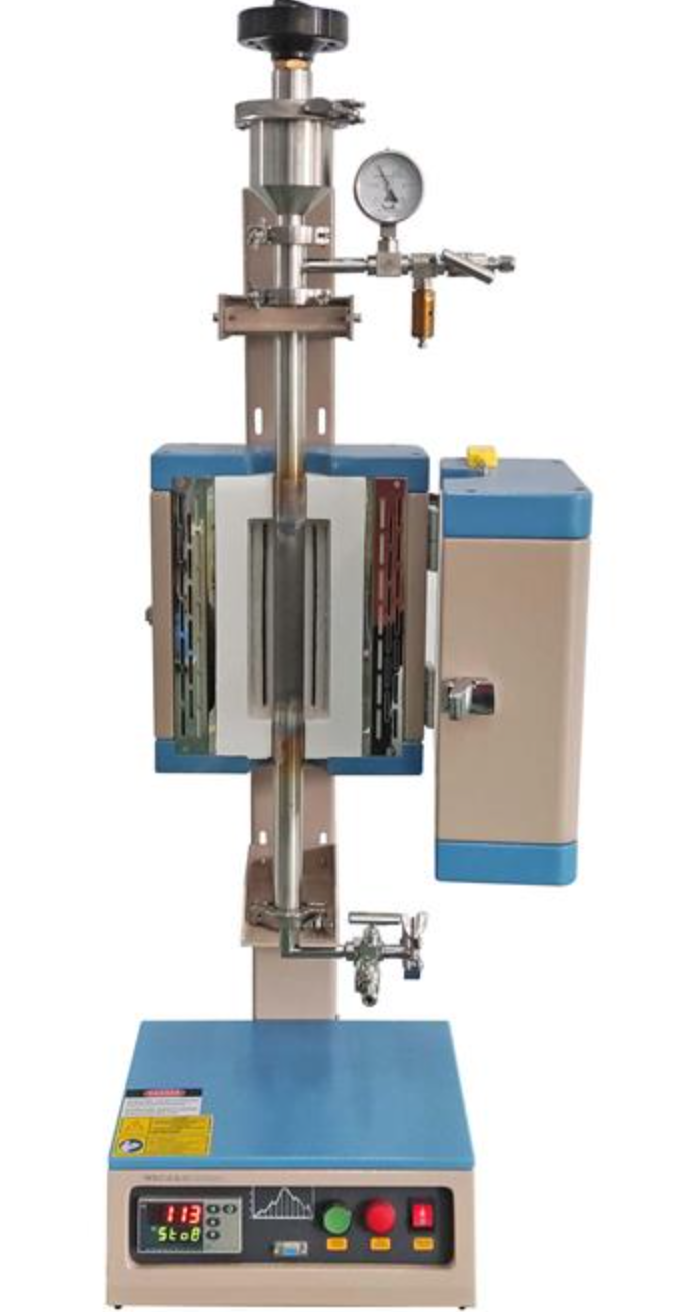

Hi-Pressure Fluidized Bed Furnace/ Reactor ( 3 bar @1100oC) w/ 1“ID Super-Alloy Tube - OTF-1200X-S-SB - Image 2

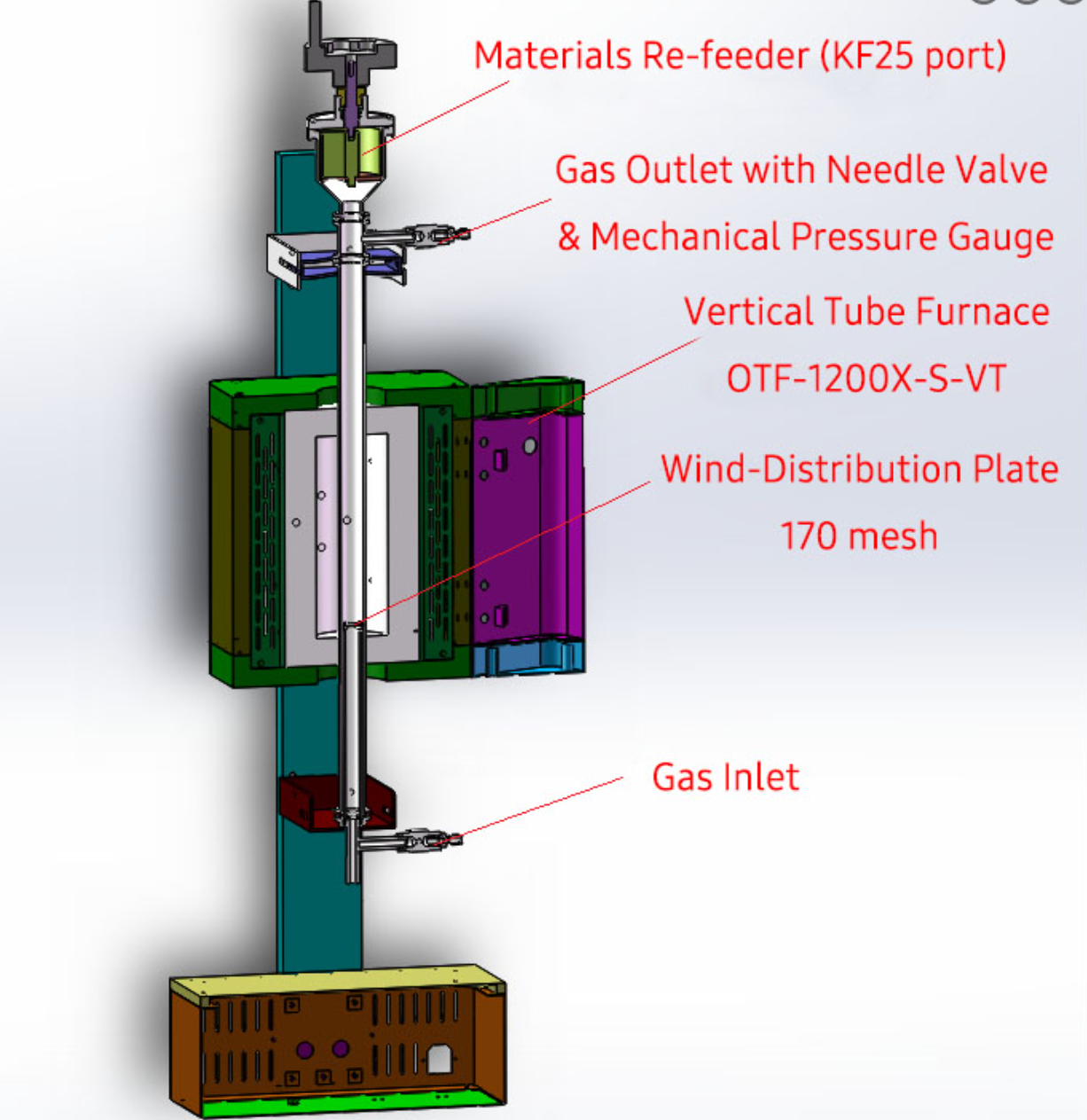

Hi-Pressure Fluidized Bed Furnace/ Reactor ( 3 bar @1100oC) w/ 1“ID Super-Alloy Tube - OTF-1200X-S-SB - Image 3
Hi-Pressure Fluidized Bed Furnace/ Reactor ( 3 bar @1100oC) w/ 1“ID Super-Alloy Tube - OTF-1200X-S-SB - Image 4
,

Hi-Pressure Fluidized Bed Furnace/ Reactor ( 3 bar @1100oC) w/ 1“ID Super-Alloy Tube – OTF-1200X-S-SB

In stock

Transported by LTL Freight (Truck)

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: hi-pressure-fluidized-bed-furnace-reactor-3-bar-1100oc-w-1id-super-alloy-tube-otf-1200x-s-sb

Product details

OTF-1200X-S-FB contains a single temperature zone vertical tube furnace, nickel-based alloy tube, and a re-feeder with a KF25 port. It is a CVD experimental equipment specifically for the deposition of the powder surface with a max working temperature of 1100C and 3 bar gas pressure

Specifications

Voltage:  AC 110V 60HZ  ( 2208 – 240VAC is available upon request )
Power：1.2KW
Working Pressure:                             -0.1 ~ 0.3MPa (1100℃)
Maximum Temperature：                  1100℃（≤30min）
Continuous Working Temperature：  1000℃
Recommend Heating Rate：              ≤10℃/min
Heating Zone：                                   200mm
Thermocouple：                                 K Type
Heating furnace
Fibrous alumina for thermal insulation
Double-layer steel structure with air cooling
Vertical Split door design for easy installation of tube
Separated temperature control unit
Processing tube



Note:  If remove the feeder and add hi-pressure fitting, the Max. working pressure can be increased to 10 MPa

Nickel base super-alloy tube with flanges.   φ30 OD x φ12 IDX 600 L (mm )
One mechanical pressure gauge(-0.1-0.3MPa) pre-installed,
The pre-installed Safety relief valve will turn on automatically once the pressure reaches 0.3Mpa (Pic.1)
One Ni alloy mesh is installed inside the tube center to carry two layers of materials (Pic. 2 &3)
        Pic. 1    Pic. 2     Pic.3
A re-feeder connects the tube with a KF25 port on the tube( which is limited pressure to Max. 3 bars)
Three different materials can be filled in the re-feeder at the same time by filling into different zones. (50ml each zone) via KF25 adaptor

Temperature Controller
30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
Over-temperature protection and alarm allow for operation without attendant(s).
+/- 1 ºC temperature accuracy.
Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Dimensions

340mm×220mm×1200mm ( L x W x H)
Net Weight

~40 Kg


Warranty
One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)
Laptop & software (Optional)
Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
Labview Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces
Compliance
   		CE Certified
NRTL or CSA certification is available at an extra cost
WarningAttention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
