Fluidized Bed CVD (FBCVD) Furnace with 1" O.D Quartz Tube and Flange for Powder CVD - OTF-1200X-S-FB
,

Fluidized Bed CVD (FBCVD) Furnace with 1″ O.D Quartz Tube and Flange for Powder CVD – OTF-1200X-S-FB

In stock

OTF-1200X-S-FB is a UL/CSA ready to pass and a Fluidized Bed Vertical Furnace with 1” O.D Quartz Tube (2” O.D enlarged central area) for powder CVD ( FBCVD)applications. It consists of a vertical positioned cylindrical heating chamber that surrounds the quartz tube with a built-in filter right in the lower middle section of the central heating zone. Its filter is a porous (15~40 microns) quartz frit that allows the controlled gas flow passes through and floats the particles on a cushion of the gas stream where the interaction between the solid and gaseous materials takes place.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: fluidized-bed-cvd-fbcvd-furnace-with-1-o-d-quartz-tube-and-flange-for-powder-cvd-otf-1200x-s-fb

Product details

Fluidized Zone

Provides uniform distribution of the gas blast over the entire cross-section of the tube chamber
Solid particles are suspended by an upward gas flowing
Excellent heat transfer and coating to every single suspended particle
Processed materials can be discharged from the top side of the tube after the cap is been taken off
Note: The gas is passed upward through the fluidized bed at a high enough velocity to lift the particles. However, particles may be swept away from the tube chamber entirely if the velocity was set too high. Depends on the particle size, you may want to adjust the gas in pressure and flow rate until particles are lifted and move turbulently inside of the tube.
Quartz FritFrits with forced convection design can trap the particles within the central heating area
Frit: 15~40 microns porous, 22mm O.D x 4mm thick

Optional Tube
You may consider SS310 high-temperature stainless steel tube for processing high-pressure materials.
Max. working temperature 800ºC
Max. Pressure 3 bars (built-in over-pressure valve which can be automatically reset and reusable)
ALD delivery system may be added on the top furnace for powder coating
Furnace Casing

Double-layer steel structure with air cooling
Split door design for easy installation of tube
High-purity Al2O3 fibrous insulation designed for maximum energy saving
Power1200W

Voltage

AC 110V or 220V Single Phase, 50/60 Hz


Max. Temperature

1100oC

Continuous Temperature

1000oC

Max. Heating Rate

<= 20 oC /min

Tube Size and Materials
  		One quartz tube is included. Main tube with bottom frit and enlarged space for particles processing
Two Ends: 25ODx 22 ID (mm); Central: 50O.D. x 44 I.D. (mm), please click the picture to the left for details
Central enlarged area ensures the high aerodynamic performance
Sealing Flanges
Bottom flange: Regular designed 1” bottom flange with 1/4” tube fitting for introducing primary gas
Top Flange: Special designed 1” top flange with backstreaming secondary (precursor) gas inlet and exhaust, please click the picture to the left for details
Options

An optional gas mixing system is available for the CVD or ALD process.
Oxygen Monitoring: An Oxygen Sensor can be used to monitor the oxygen level of gas(es) used in CVD systems for preventing or reducing oxidation. Please click the picture below to learn more
Ultrasonic Atomizer can be integrated into the system for delivering sub-micron droplets to the hot zone  Please click the bottom right picture for details
Optional material feeder for continuous operation.

Heating Zone Length

200mm (single zone)

Constant Heating Zone
60mm (+/-2oC)

Temperature Controller
0 programmable segments for precise control of heating rate, cooling rate, and dwell time.
Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
Over-temperature protection and alarm allow for operation without attendant(s).
+/- 1 ºC temperature accuracy.
Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Heating Elements

Fe-Cr-Al Alloy doped by Mo

Fitting Ports

1/4” Tube Fittings were installed on both sides of the flange for standard connection to the gas supplier

Dimensions

340mm×300mm×1000mm ( W x L x H)

Net Weight

~20 Kg (excluding mobile cart)

Shipping Dimensions

48″ x 40″ 35″ (L x W x H)

Shipping Weight

150 lbs

Warranty
One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

Laptop & software (Optional)
    		Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
Labview Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces
Compliance
   		CE Certified
NRTL or CSA certification is available at an extra cost
Warning
Tube furnaces with quartz tube is designed for using under low positive pressure < 0.2 bars / 3 psi / 0.02 Mpa
Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C

Related products
Quick View
Compare
Categories: ,

600°C SS316 Alloy Reactor with 6 Feedthroughs for Molten Salt Electrolyze or Battery - VBF-600S

Read more
VBF-600S is a compact top-loading furnace with an SS316 vessel. It is designed for studies of molten salt electrolyzers or batteries. The top flange with six 1/4" tube feedthroughs can be used as gas inlet, gas outlet, electrode feedthrough, and temperature feedthrough.
Quick View
Compare
Categories: ,

Continuous Fluidized Bed Furnace up to 1200℃ with Powder Feeding and Collecting - OTF-1200X-III-VT-FB

Read more
  OTF-1200X-III-VT-FB is a continuous fluid bed system up to 1200℃ with three zine heating tube furnaces and an 80 mm OD quartz reactor.  powder feeding and powder collecting functions are integrated into the system to achieve particle coating for various materials.
Quick View
Compare
Categories: ,

High Pressure Reactor with PTFE lining Up to 220C & Max 3 Mpa for Rotary Oven with 50 or 100 ml option - RC-SS-XX

Price range: $399.00 through $998.00
Select options

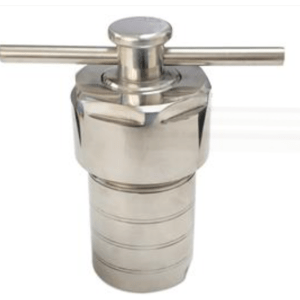

RC-SS-50 is one small Stainless Steel 304 high-pressure reactor with PTFE lining.  It is designed for MTI multiple vessel rotary oven EQ-BGP-R8.  It can reach a pressure up to 3 Mpa and a temperature of up to 200°C. It is used for homogeneous hydrothermal processing. The reactor size is 50ml. Please select the vessel capacity in the product options.
