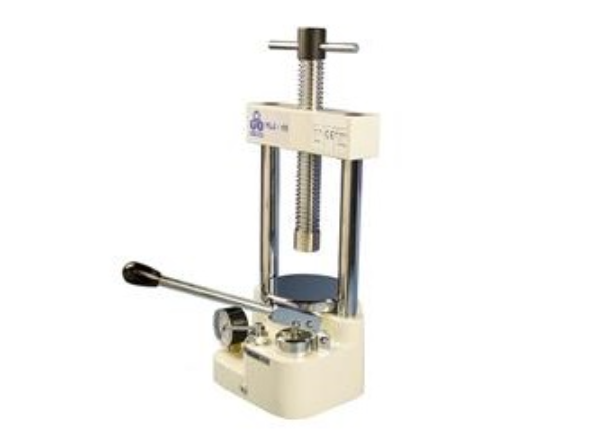

15T Compact Hydraulic Pellet Press for use in Glove-box - YLJ-15

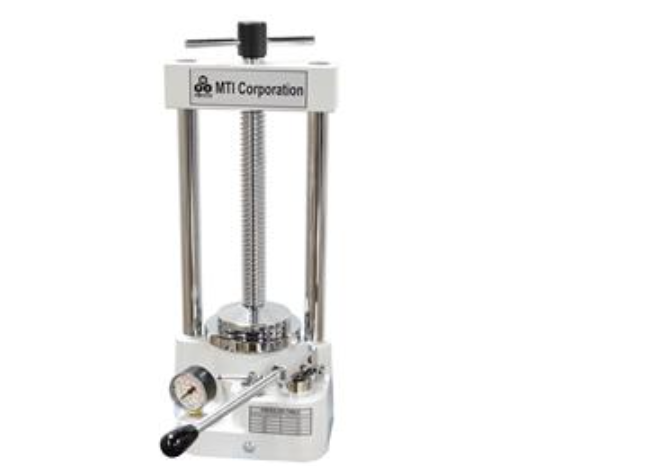

15T Compact Hydraulic Pellet Press for use in Glove-box - YLJ-15 - Image 2
,

15T Compact Hydraulic Pellet Press for use in Glove-box – YLJ-15

In stock

$1,898.00

YLJ-15 is a high-quality compact manual 15T hydraulic press, which has a built-in hydraulic pump with an auto-return function for quick die removal & sample retrieval. The lightweight and fully airtight design make it extremely well-suited for operation inside of a glove box where having an inert environment is crucial to prevent unwanted sample contamination. The pressing machine is made in Europe and there are two types of height that can be chosen, which is suitable put in the glovebox through Airlock Chamber.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
Buy now
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: 15t-compact-hydraulic-pellet-press-for-use-in-glove-box-ylj-15

Product details

Specifications:

StructureMade of carbon steel with Cr plating ( support rod)Casting carbon steel with painting ( Base )
Max Pressure
Normal operating pressure force: 7 metric tonsMax. operating pressure force: 15 metric tons with > 50 mm H Die (for < 5 minutes pressure holding)The pressure gauge is built-in

Pressure Gauge




Gauge displays force in both PSI and Bar units for versatility (click picture on the left to enlarge)Please follow the Force Conversion table above to obtain the equivalent force applied on the Hydraulic Cylinder according to the pressure gaugeNotice: Please close the Release Lever before transporting the press into the glovebox via the air-lock chamber. It will cause oil leakage if transported with the lever open
For calculating the actual pressure applied on your working piece, please follow the equation below:
F = P_(Gauge Displayed Pressure Value (GDPV)) × S_(Cross-section area of the inside piston)
Since 1 Bar = 1.0197 kg/(cm)^2, Diameter of piston is 7cm
Assume Gauge Displayed Pressure Value is 100
F = 101.97 × π × (D/2)^2 = 3922.78 kg Force ≈ 3.9 Ton force
Therefore, From pressure gauge value to actual force is 26.31
Assume the Diameter of your Die is 4 cm, and Gauge Displayed Pressure Value is also 100 Bar
Then, the actual pressure on your working piece is:
P_(actual on the working piece) = F/S_(Cross-section area of the working piece)
P_(actual on working piece) = (3.9 Ton)/(12.56 (cm)^2 ) = 310 Bar
In general: P_(actual on the working piece ) = (P_( GDPV)/26.31) / (π*r_(Crosection area of the working piece)^2)
Lifting Height of Cylinder13 mm (max.)
Dimensions of Machine
& Working Space

      		YLJ-15L:  200mm(L) x 330mm(max W) x 480 ~ 715mm (H)D1: 120mm  D2: 70mm D3: 125mm  H1: 260mm   H2: 220 mmYLJ-15S: 200mm(L) x 330mm(max W) x 410 ~ 575mm (H)D1: 120mm   D2: 70mm D3: 124mm H1: 180mm   H2: 155mm



Length of Press Rocker180mm
Protective Shield (optional)


A protective shield is available at an extra cost of $195 for YLJ15L only. Please contact MTI for more details.
Protective shield is not available for YLJ15S.
Please click the video below to watch how to install the shield to the press.
Note: The protective shield does not come with the press’s standard package.
Net Weight20 kg (44 lbs)
Dimensions of Shipment32″ x 10″ x 10″


Weight of Shipment60 lbs
Press Dies (optional)Please click the picture below to order Pressing dies with various diameters  at an extra cost



Warranty		The pressing machine was quality inspected in the USA, lifetime support is providedOne year limited standard warranty (Extended 5-year warranty is available at an extra cost)
ComplianceCE Certified
Application Notes


       		Warning: Customers must always wear protective goggles during the operation inside the gloveboxDo not raise the bottom cylinder (piston) more than it’s maximum traveling distance (13 mm)This compact press  can be placed inside the glove box to press materials under inert gas
Operation Videos
                 (For how to use pressing dies, please click the video on right)




 STANDARD PACKAGE:

No.DescriptionsQtyImage
1YLJ-15L Laboratory Press with built-in hydraulic pump1 unit
2Operation manual CD1 pc
