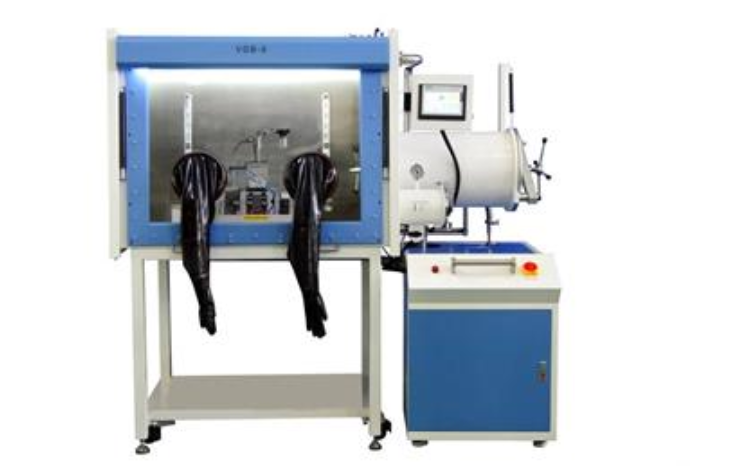

Jet Mill (50 - 500 g/ hr) in Glovebox w/ Purification System - MSK-JB-500-LD
Jet Mill (50 - 500 g/ hr) in Glovebox w/ Purification System - MSK-JB-500-LD - Image 2
Jet Mill (50 - 500 g/ hr) in Glovebox w/ Purification System - MSK-JB-500-LD - Image 3
Jet Mill (50 - 500 g/ hr) in Glovebox w/ Purification System - MSK-JB-500-LD - Image 4
,

Jet Mill (50 – 500 g/ hr) in Glovebox w/ Purification System – MSK-JB-500-LD

In stock

MSK-JB-500 is a compact jet mill with a cyclone device in a glove box with an inert gas purification system ( O2 & H2O < 1 ppm), It is designed for milling air-sensitive metallic powder to micron-scale  (2-5 microns) with an output rate of 50 – 500g/hr. in a high purity inert gas environment without oxidation.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: jet-mill-50-500-g-hr-in-glovebox-w-purification-system-msk-jb-500-ld

Product details

SPECIFICATIONS

FeaturesJet milling process under an inert atmosphere.Glovebox with a purification system. (O2 & H2O < 1 ppm).High efficient gas-solid cyclone separator. Pressure control system for gas intake and exhaust.
Working Power208 – 240V AC, 50/60Hz, single phase1850 W
    Jet Mill


Mill Liner:                             High purity fully sintered aluminaAutomatic powder feeder controlled by vibration frequency (40-400Hz   adjustable)Input particle size:                100 – 200 meshOutput particle size:              2 – 15 micronMilling Speed:                        50-500g/hr The output particle size is depended on material hardness and input particle size. Coarse particles may need 3-5 times milling to obtain the finest size.Operation Gas requirement:           N2 or Ar, 4N5 purity  from outside glovebox via a KF40 feedthroughOperation pressure requirement:    0.6 – 1.0 MPa Pressure Gas consumption rate:                    0.25 – 0.5 m3/ minute
Particle collecting

One SS304 cyclone is included to collect particleOne air filter is installed on the output port of the cyclone to collect fine particles > 2 micronsThe output port of the air filter is connected to the outside of the glovebox via an electronic valve with the pressure sensor, which is opened when the jet mill starts and closed when the milling stop
Glove-box

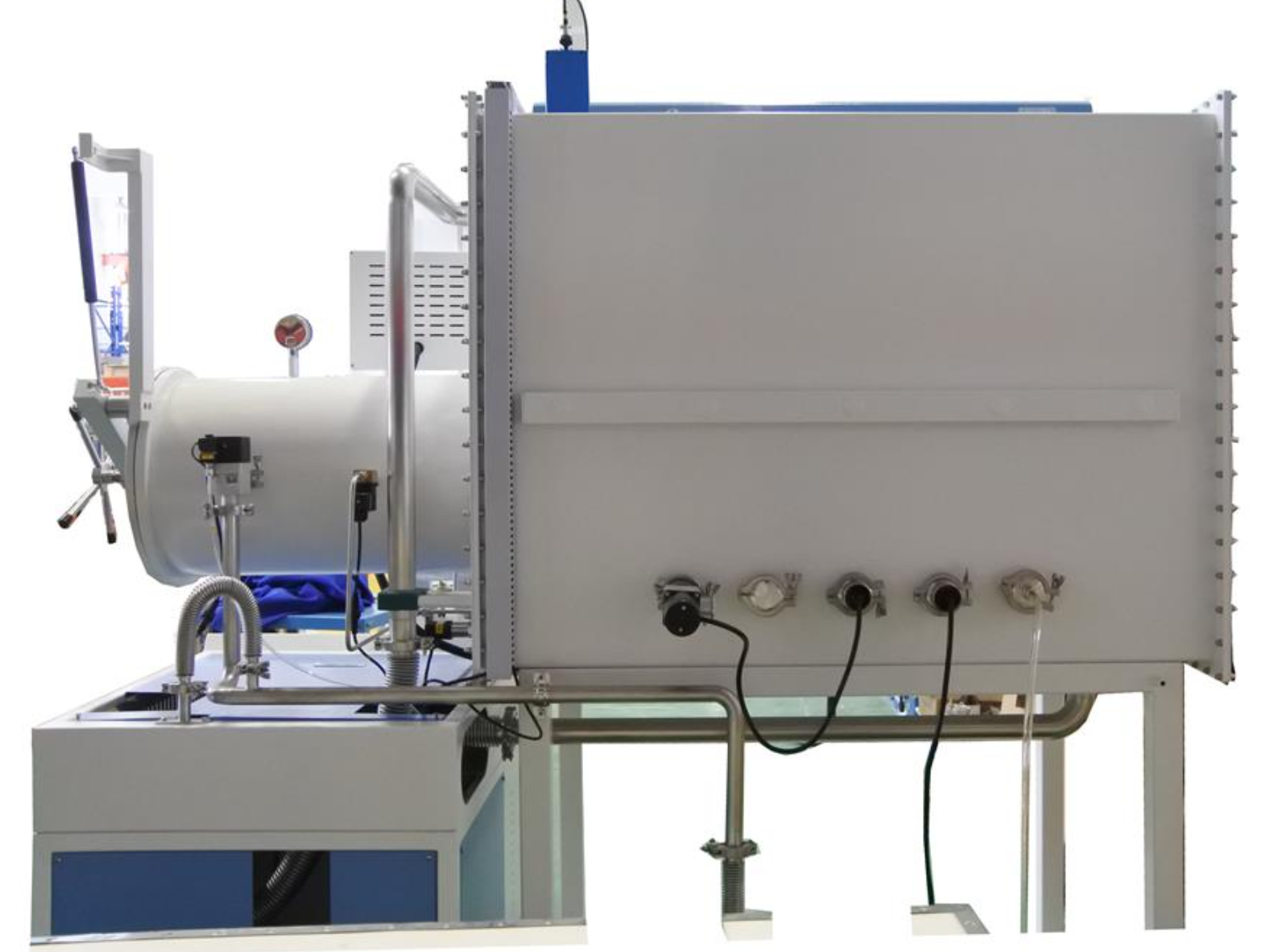

The glove box with hinged type door and  purification system to provide H2O and O2 less than 1 PPmFive KF40 ports are built in the back of the glovebox to feedthrough electricity, and compressive gasOne of the ports connects to a check valve and a ball valve to release compressed gas from the jet mill at the desired pressure.
OptionalA pre-crushing is needed to achieve finer particles during jet milling ( Click pic. 1  to order )An optional sieve can be used to filter the sample to 100-200 mesh to meet the input requirements. Please click the picture (Pic. 2)  to order the MSK-SYU-3 sieving system
Pic.
Dimensions
WarrantyOne year limited warranty with lifetime technical support
Demo Video
