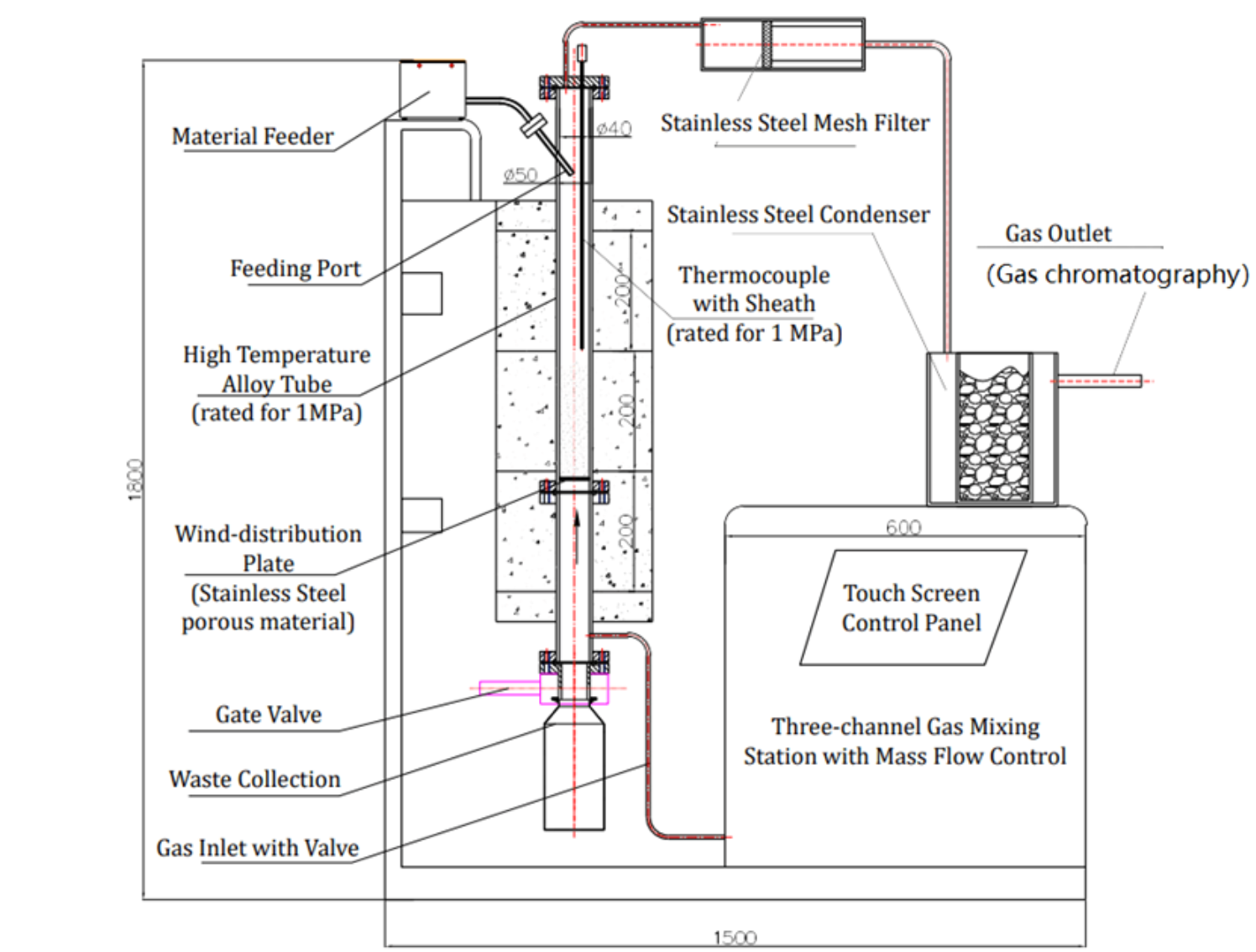

Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB
Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB - Image 2
Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB - Image 3
,

Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor – OTF-1200XII-FB

In stock

OTF-1200X-FB is a Hi-Pressure Fluidized Bed Pyrolysis Reactor for the research on converting waste plastic into flammable gas.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: converting-waste-plastic-to-flammable-gases-hi-pressure-fluidized-bed-pyrolysis-reactor-otf-1200xii-fb

Product details

Power


2500W
Voltage
AC 220V Single Phase, 50/60 Hz
Max. Temperature
1100oC
Continuous Temperature
1000oC
Max. Heating Rate
<= 20 oC /min
Tube Size and Materials
  Ni-Based Super-alloy
Sealing Flanges


Bottom flange: Regular designed 1” bottom flange with 1/4” tube fitting for introducing primary gas
Top Flange: Special designed 1” top flange with backstreaming secondary (precursor) gas inlet and exhaust, please click the picture to the left for details
Options


Powder feeder  Gas mixing and delivery  Cyclon
Heating Zone Length
200mm (single zone)
Temperature Controller

30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
Over-temperature protection and alarm allow for operation without attendant(s).
+/- 1 ºC temperature accuracy.
Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Heating Elements
Fe-Cr-Al Alloy doped by Mo
Shipping Weight & Dimensions
620 lbs, 52″x41″x72″
210 lbs, 47″x40″x42″
425 lbs, 47″x40″x62″
Warranty
One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

Compliance


CE Certified
NRTL or CSA certification is available at an extra cost
Operation Instructions video
