Automatic Desktop Grinder w/ 5" Agate Mortar ( Ar Gas Compatible) - MSK-SFM-8
,

Automatic Desktop Grinder w/ 5″ Agate Mortar ( Ar Gas Compatible) – MSK-SFM-8

In stock

$1,998.00

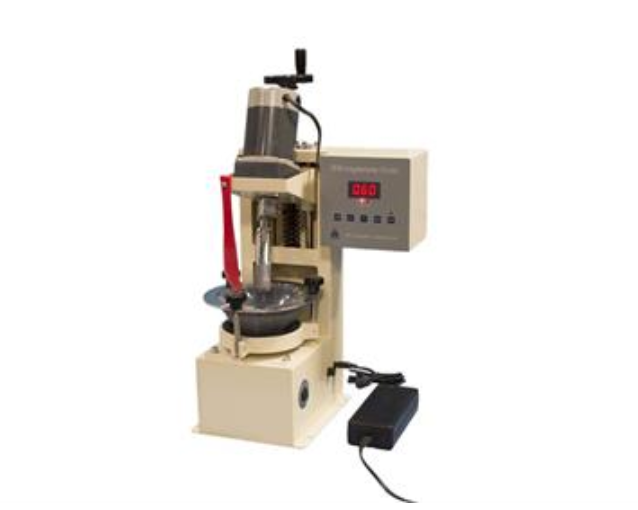

MSK-SFM-8 is designed for grinding & mixing a small batch of chemicals and compounds automatically for the R&D laboratory. Its mortar and height-adjustable pestle are designed for efficient, easy, and uniform grinding. The mortar can be taken off easily for cleaning. It is an excellent tool for preparing various ceramic materials in a research lab to save labor. Grinding time can be set using the automated controller. Minimum granularity can be as small as microns even nanometers.  The grinder can be used under Ar gas in a glovebox.

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
Buy now
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: automatic-desktop-grinder-w-5-agate-mortar-ar-gas-compatible-msk-sfm-8

Product details

SPECIFICATIONS

Working Voltage
  		110- 240V AC via 24V DC power adapter is included for universal usingThe power adaptor is UL, TUV, CSA, and CE-approved for worldwide use.It can be used in Ar gas glove-box
Max. Power Consumption120W
Grinding Bowl and Plastic Spatula5“ Agate Mortar & Agate Head Pestle included, see Pic.2&3Mortar Dimensions: Ø120mm x 34mm Dia.A plastic spatula is included for spreading the powder in the grinding bowl (Pic. 4) Pic.1  Pic.2   Pic.3     Pic. 4
Grinding Speed & PressureMortar: 0 – 10rpmPestle: 0 – 80rpm adjustableGrinding pressure is adjustable by spring
Dimension240mm(L) x 240mm(W) x 500mm(H) or 9.4″ x 9.4″ x 19.7″
Net Weight38 lbs
Shipment Dimension40″ x 20″ x 30″ (L x W x H)
Shipping Weight65 lbs
WarrantyTwo-year limited warranty with lifetime technical support
Note: Consumables and damages are not covered by the warranty. such as Agate Mortar & Agate Head Pestle
ComplianceCE,  TUV, UL, and CSA  certified in power supply The machine is safe 24VDC input, which can be used without any safety certificationNRT or CSA certification is available upon request at an extra cost
Operation  Video

Application notePlease crush the bulk sample before grinding using our electric Jaw crusherPlease consider our SYU-3 ultrasonic filtration system to filter the product.


Warning		Do not grind samples that have more than 7.5 Mohs hardness scale, the Pestle head or Mortar may have an overpressurizing situation.Do not grind samples O.D larger than 2mm.Do not use any hydrofluoric acid and explosives samples.Wear protective clothing and equipment appropriate for the hazard samples.Do not heat the grinder, or put it in a dry oven for drying.In order to avoid overpressurization of the Pestle Head, the grinding process should be step by step,  increasing pressure by applying only half turn each time, and the Pestle head has a compressive depth limit of (up to) 3mm.
