Vacuum Mixer w/ Vac. Pump & 2 Containers (150 & 500mL) & Optional 1L Tank-MSK-SFM-7
Vacuum Mixer w/ Vac. Pump & 2 Containers (150 & 500mL) & Optional 1L Tank-MSK-SFM-7 - Image 2
,

Vacuum Mixer w/ Vac. Pump & 2 Containers (150 & 500mL) & Optional 1L Tank-MSK-SFM-7

In stock

Price range: $2,489.00 through $4,598.00

MSK-SFM-7 is designed to produce coating slurry by mixing a small batch of chemicals and compounds in two tanks of 150 ml & 500 ml under vacuum. It has a built-in pump that can vacuum the mixing container to -0.08Mpa and a mixing speed of 320rpm. The vibration plate is located at the bottom to remove the gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab. It is compact so that put in a glovebox with N2 gas ( No Ar).  Ar compatible 1L mixer is optional

  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block
Buy now
<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>
SKU: vacuum-mixer-w-vac-pump-2-containers-150-500ml-optional-1l-tank-msk-sfm-7

Product details

SPECIFICATIONS


Voltage Input		Single Phase 110VAC or 220VAC (please choose from the product options bar)220V AC Power plug is not included. Please click here to order the plug)
Power150W
Rotary Speed320 rpm ( fixed speed) )
Slurry ViscosityMax. 10000 mPa·s (cps)
Mixing Container

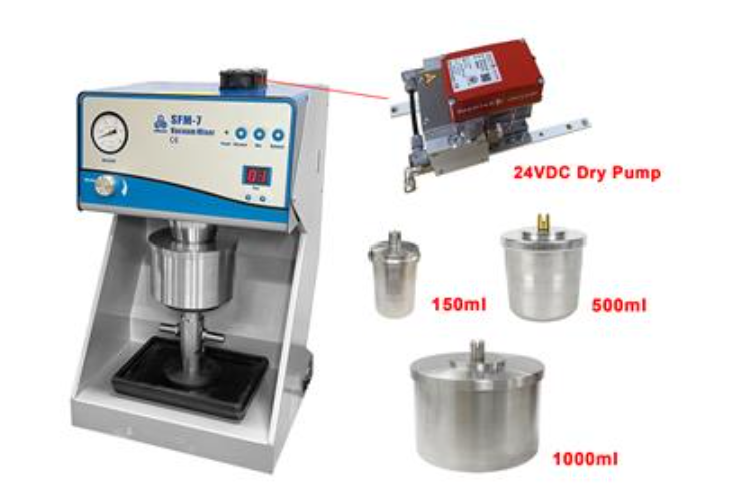

Two vacuum-sealed containers are included. One 150ml stainless steel set and one 500ml aluminum set
The mixing blade is built-in into the top of the containerThe metal filter prevents solid particles from the vacuum pumpSlurry volume is suggested to be in the range of  20-70% of tank volume. If your slurry amount is too small, please contact us before purchasing to make the gap between the blade tip and jar bottom around 2  mm.  Option: 30 mL, 100 mL, and 1000 mL containers are available with extra cost
30 mL  ,100 mL ,   150ml , 500ml  , 1000ml
NRTL-and Ar gas compatible version 1000 ml mixer is available from the product option
 Vacuum pump & Vacuum Level


  		Built-in single-stage vacuum pumpVacuum Level: -0.08~0.09 Mpa
Mixing Time0~99 Minutes Adjustable
Vibration PlateVibrating at 1000 Hz
OptionalFor better mixing quality, you may need a dispensing machine and viscosity meter as the links below
   ( click picture to see specs and order )
Dimensions13”L x 12”W x 21”H
Net Weight70 lbs
Shipping Dimensions40”L x 25”W x 30”H
Shipping Weight95 lbs
ComplianceCE only for the standard version ( oil vacuum pump )
NRTL or CSA is available for  Ar gas version only
Operation Video


Vacuum Oil Tank Refill


  		Notice: Operating the mixer with insufficient oil will damage the pump. Check the oil level window on the right side of the machine. If there is less than half a tank of oil, refill oil from the oil tank opening on the top of the machine.Refill the tank to have an oil level above half full indicated by the red dotted line in the picture to the left.Please click to order High Vacuum Pump Oil / Hydrocarbon oil.The mixer is not suitable for long time use.  suggest max. running time is < 30 minutes for each running
Warranty & ComplianceOne year limited with lifetime supportThe mixing blades and tank must be cleaned immediately after use. Failure to do so may cause the mixing assembly damaged, which is not covered by the warranty. Ce certified
Sorry, NRTL or CSA certification is only available for optional Ar-compatible versions ( 1L+150ml+ 500ml)
