500°C Ti Metal Reactor with 6 Feedthroughs for Molten Salt Electrolyze or Battery – VBF-600Ti

In stock

Transported by LTL Freight (Truck)

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

SKU: 500c-ti-metal-reactor-with-6-feedthroughs-for-molten-salt-electrolyze-or-battery-vbf-600ti

Product details

Product details

SPECIFICATION:

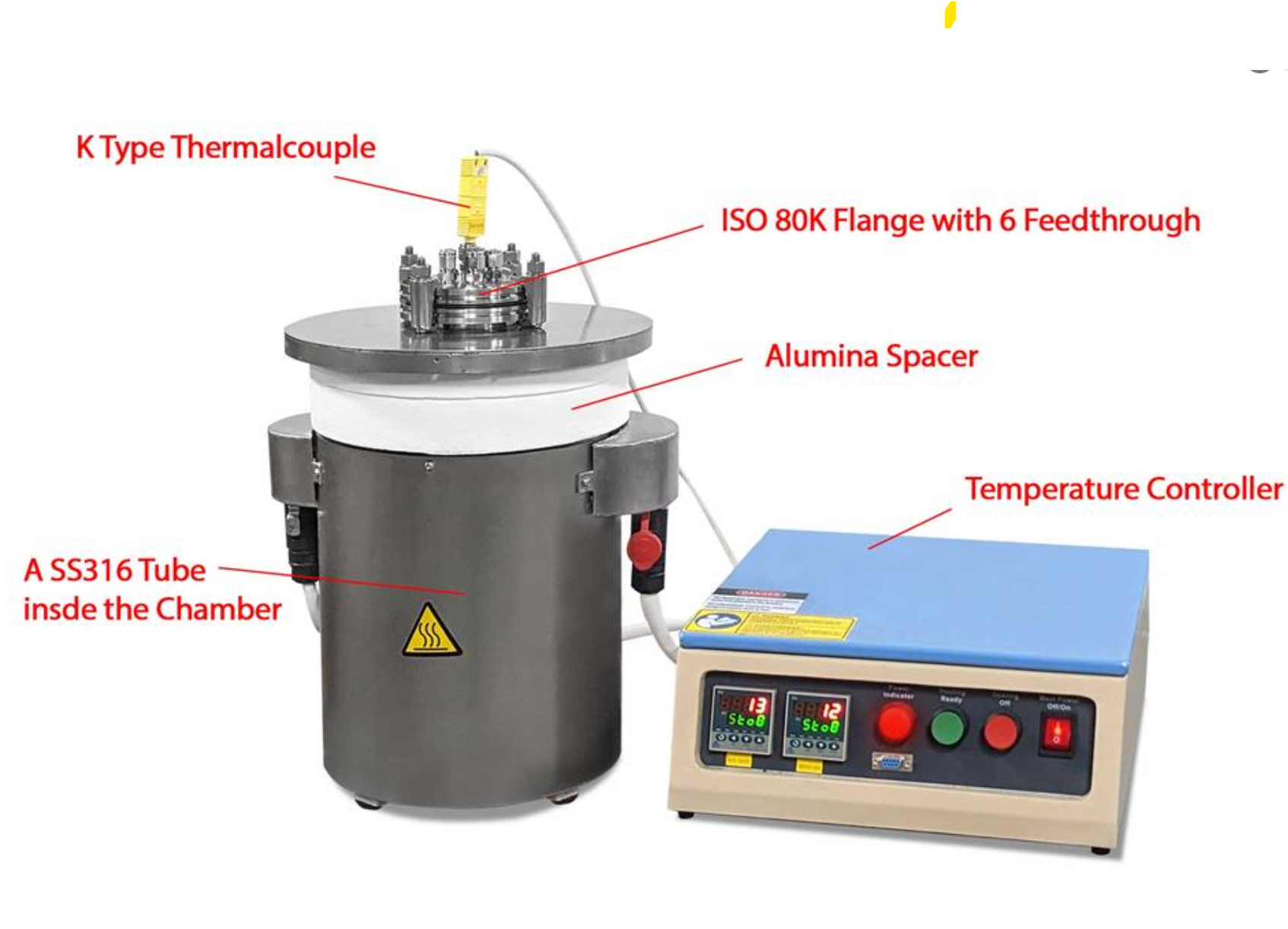

Structure	SS316 case for anti-corrosive processing The crucible furnace has a heating chamber of 4.7″ ID x 8″ H, (120 mm ID x 200 mm H) The separated temperature controller for remote operation The compact furnace can be put in the glovebox via an antechamber The furnace includes a titanium tube and an ISO 80K SS flange with 6 SS feedthrough An alumina spacer is included to isolate the temperature from the heating chamber
Power	AC 110V, Single Phase, 50/60Hz 1.5KW Max.
Max. Temperature	Up to 600°C ( < 1 hour ) Continuous: 500°C
Max. Heating Rate	20 °C /min Max.
Reaction Vessel	The reaction vessel is made of pure Ti metal with a purity of > 99.5 wt% DN80ISO-K SSflange with six SS 1/4″ compression tube ports. Tube dimension: Ø 76 x Ø 70 x D 290 mm Max. Vacuum: 10-6 torr by turbo pump Max. positive pressure: 0.2 Mpa ( 2 bar ）
Optional:	The furnace can be upgraded to 1000oC with a quartz tube (100OD x 92IDx 300L mm )
Temperature controller	One digital temperature controller is built in with an accuracy of ±1°C PID automatic control and auto-tune function. 30 programmable segments for precise process Built-in protection for overheating and broken thermocouples. Two Omega K-type thermocouples included One for furnace temperature control One for temperature monitoring inside the vessel. RS485 port is included for the remote control.
Dimension	Control Unit: 340mm L x 300mm W x 145mm H Furnace: 350mm L x 265mm W x 540mm H
Shipping package size	40″ x 23″ x 31″
Shipping weight	109 lbs
Warranty	One-year limited warranty (The warranty does not cover consumable parts)
Certificate	CE Certified NRTL Certification is available upon request, additional charges will apply
