Product details
MSK-SFM-50 is a high throughput vortex-vibration ball mill that sets the performance standard for small quantity milling and mixing up to 50 samples for 15 ml tube, which takes place (often within 60 seconds) inside the disposable 5 ml screw-cap microtubes. The optimized mixing motion causes rapid milling through constant high-velocity impact from the hardened YSZ micro-beads. It is excellent for material genome initiative research of ceramic compounds.
SPECIFICATIONS:
| Working Voltage | 100 – 240V AC 50/60Hz for worldwide use60W ( 1.5A )US Plug |
| LCD Control | LCD controller for setting speed and timeSpeed range: 500-2500rpmCycle Time: 1min – 99h59min, or 1sec – 99min59secAmplitude： 4 mm |
| Max. Loading Capacity | 4.5 Kg Max. |
| Sample Holder & Tube | Standard plastic foam sample holder for 50 pcs 16 mm Dia x 115 mm L nylon tube50 pcs Nylon tubes ( 16mm dia.,~15 ml) are included for immediate useA spare sample holder with various size cavity is available upon requestTube Holder Holder P/NTube Qty & DiameterTube Holder Size(mm)MTV-B0150x Ø10mm245x132x45MTV-B0250x Ø12mm245x132x45MTV-B0450x Ø16mm245x132x45MTV-B0515x Ø25mm245x132x45MTV-B0615x Ø29mm245x132x45MTV-B00Spare holder305x178.5×25 |

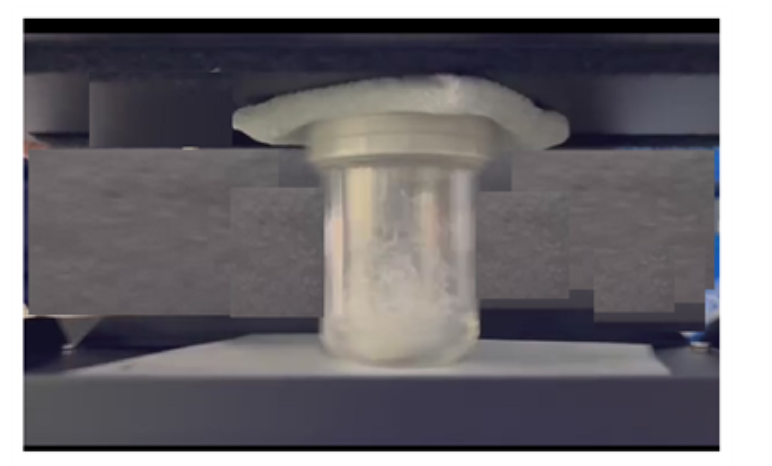

| Optional containers | This vibrating device also can clamp single or multiple containers for mixing and milling. Click Pic. 1-2 to order a containerA heated container with temperature control is available upon request ( Pic. 3） Pic. 1  Pic. 2  Pic. 3 |
Grinding media | To achieve better milling and mixing, you may consider putting zirconia milling balls into the microtubeMilling balls: Ø 5 mm, Ø 1.0 mm; Ø 1.5 mm; Ø 3.0 mmVarious size zirconia milling balls are available to order at MTI for ball milling with microtube. Click the left picture to order |
| Dimensions | 426x250x480mm |
| Net Weight | 55 lbs / 25kg |
| Compliance & Warranty | Two years limited warranty with lifetime technical supportCES certifiedNRTL or CSA certifications are available upon request at the extra cost |
| Operation Video | https://youtu.be/fu-2i_uVcC0 |
