Product details

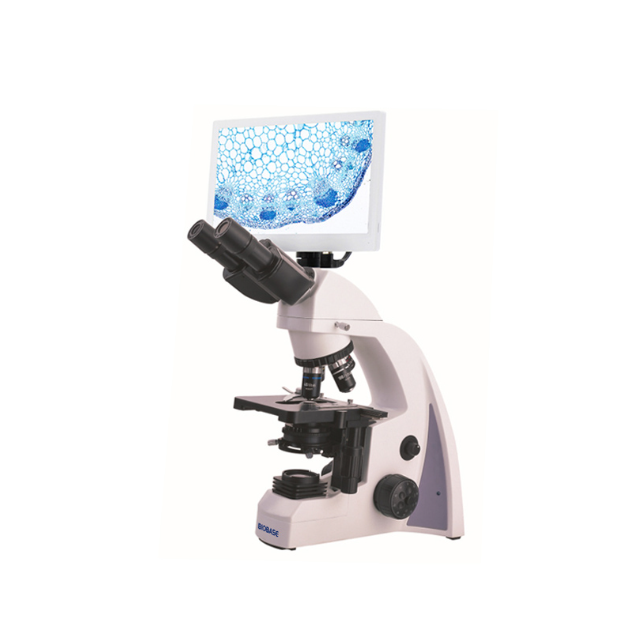

Digital Biological Microscope With Lcd Screen DM-125 DM-300M
Technical Parameters:
| Model | DM125 | DM-300M | |
| Optical System | Infinite Optical System | / | √ |
| Finite Optical System | √ | / | |
| Viewing Head | Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | √ | / |
| Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | / | |
| Seidentopf Binocular Viewing Head, 30° Inclined, Interpupillary 48-75mm | / | √ | |
| Seidentopf Trinocular Viewing Head, 30° Inclined, Interpupillary 48-75mm | / | ● | |
| MD101Microscope Camera with HD Monitor, 5M pixels, Colour CMOS | ● | ● | |
| Eyepiece | Wide Field Eyepiece WF 10×/18 | √ | √ |
| Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment | / | ● | |
| Objective | Achromatic Objective 4×,10×,40×,100× | √ | / |
| Infinite Semi-plan Achromatic Objectives 4×,10×,40×,100× | / | √ | |
| Infinite Plan Achromatic Objectives 4×,10×,40×,100× | / | ● | |
| Nosepiece | Backward Quadruple Nosepiece | √ | / |
| Quadruple Nosepiece | / | √ | |
| Stage | Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm | √ | √ |
| Condenser | NA1.25 Abbe Condenser | √ | / |
| Sliding-in Centerable condenser NA1.25 | / | √ | |
| Dark Field Condenser (Dry, Oil) | ● | / | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm | / | √ |
| Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | √ | / | |
| Illumination | 6V/ 20W Halogen Lamp, Brightness Adjustable | ● | ● |
| S-LED Illumination, Brightness Adjustable | √ | √ | |
| Accessories | Phase Contrast Kit, Fluorescent Attachment, Polarization Set | ● | ● |
| Power Supply | AC 110~220V, 50/60HZ | √ | √ |
| Packing Size(mm) | 380*270*470mm (DM-125 Main body) 350*350*640(DM-300M) | √ | √ |
| Gross Weight(kg) | 8.5(DM-125 Main body);12(DM-300M) | √ | √ |
